Vermeer S925TX Mini Skid Steer

The Vermeer S925TX Mini Skid Steer is a compact loader designed for a variety of landscaping, construction, and utility tasks. With a 25-horsepower engine and a lift capacity of up to 925 pounds, this mini skid steer offers impressive performance in tight spaces. It features a track system for enhanced stability and maneuverability on various terrains, including soft or uneven ground. The S925TX comes with a universal attachment plate, allowing it to work with a wide range of tools and accessories. Its ergonomic controls and stand-on operator platform provide comfort and visibility, making it easy to operate for long periods.

Specifications

• Engine:
  • Type: Kubota D1105
  • Power: 25 HP (18.6 kW)
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 10.5 gallons (39.7 liters)
• Operating Capacity:
  • Rated Operating Capacity (ROC): 925 lbs (420 kg)
  • Tipping Load: 2643 lbs (1200 kg)
• Dimensions:
  • Overall Length without Standard Bucket: 84 in (213.4 cm)
  • Overall Length with Standard Bucket: 106 inches (269.2 cm)
  • Overall Width:
    • With Standard Tracks: 42 inches (106.7 cm)
    • With Narrow Tracks: 36 inches (91.4 cm)
  • Height: 58 inches (147.3 cm)
  • Ground Clearance: 6 inches (15.2 cm)
• Lift Height: 84.5 inches (215.2 cm) at hinge pin
• Hydraulic System:
  • Hydraulic Flow: 15.5 gpm (58.7 L/min)
  • Hydraulic Pressure: 3045 psi (209.9 bar)
  • Hydraulic Reservoir Capacity: 10.5 gal (39.7 L)
• Track System:
  • Track Width:
    • Standard: 9 inches (22.9 cm)
    • Narrow: 7 inches (17.8 cm)
  • Ground Pressure:
    • Wide Tracks: 4 psi (27.6 kPa)
    • Narrow Tracks: 5 psi (34.5 kPa)
• Weight:
  • With Standard Tracks: 3,400 lbs (1,542 kg)
  • With Narrow Tracks: 3,300 lbs (1,497 kg)
• Auxiliary Hydraulics: Standard for powering various attachments

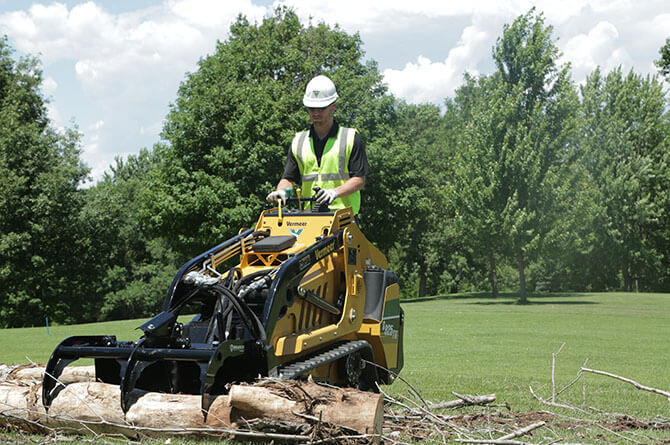

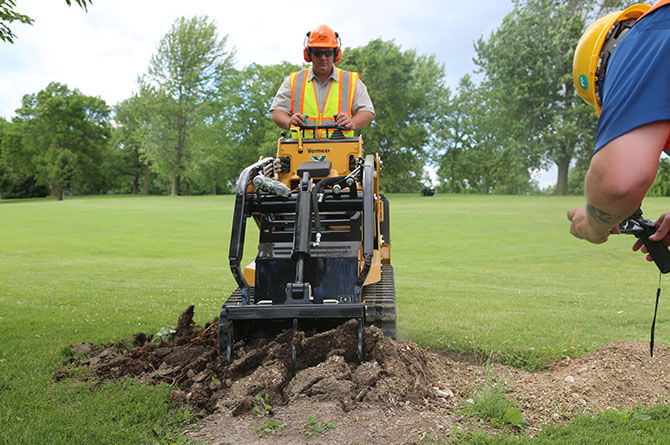

Additional Photos

The Vermeer S925TX Mini Skid Steer will be part of the Equipment Demonstrations at Canada’s Outdoor Farm Show 2024. Check out all the equipment available!
