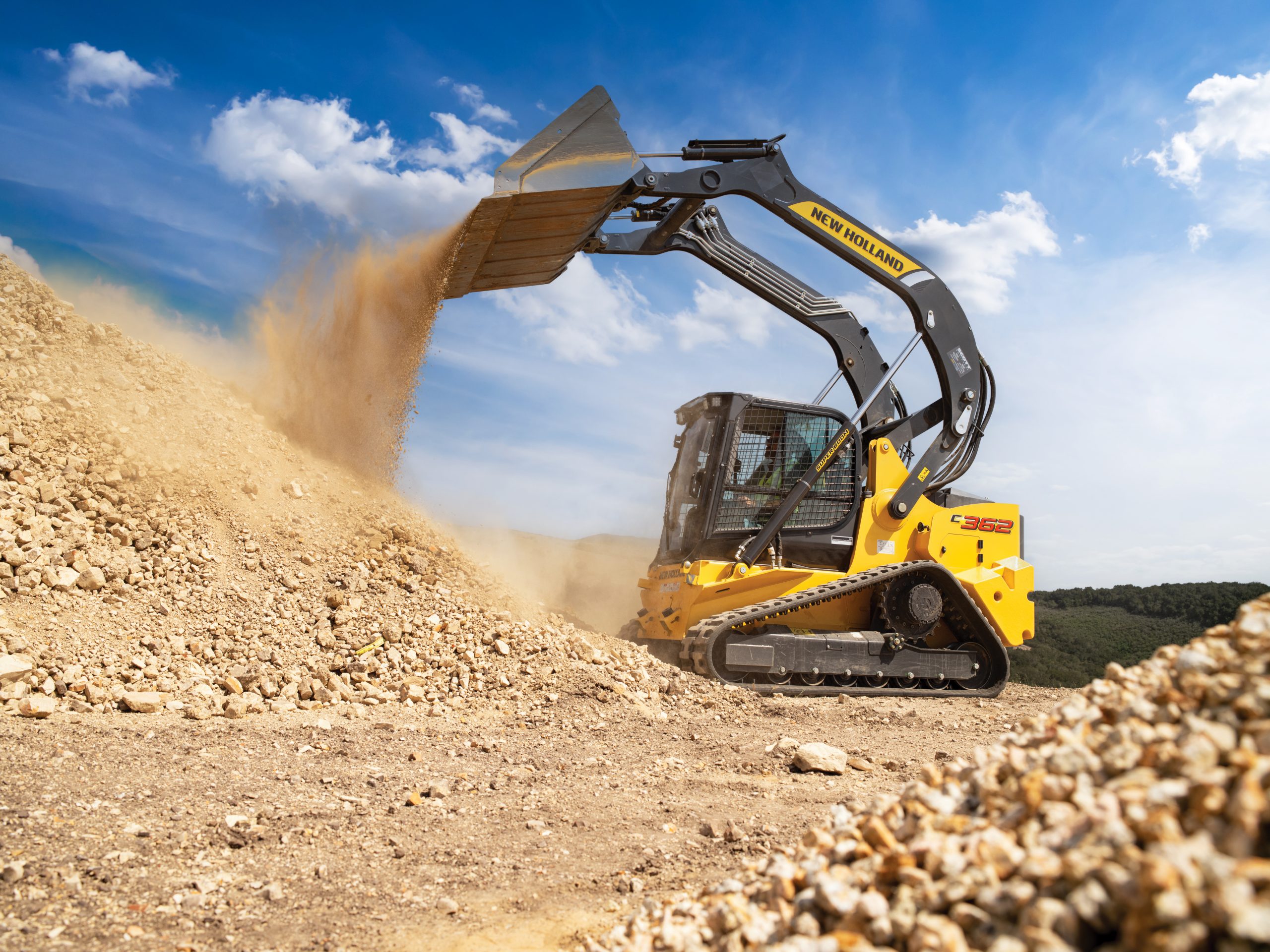

The New Holland C362, the largest within the Compact 300 Series of track loaders is optimized for lift-and-carry operations. The C362 is powered by a 114 HP turbocharged 3.4 litre diesel engine, and boasts a rated operating capacity of 6,200 lbs (50% tip), and operating weight of 16,100 lbs. With a hydraulic system offering 41.6 gpm (157 lpm), the C362 is powerful enough to handle a variety of attachments.
Dimensions include a length of 158.3 inches (402 cm) with the bucket, a width of 83.5 inches (212 cm), and a height of 83.6 inches (212 cm). New Holland Super Boom® vertical lift linkage delivers up to 39 inches (99 cm) of dump height reach and a maximum dump height of over 100 inches (254 cm). The cab is enclosed and pressurized, featuring heat, air conditioning, an air suspension seat, and excellent visibility. The loader’s rubber tracks with steel reinforcement and automatic hydraulic tensioning enhance durability and performance. Advanced features include a multifunctional LCD display, optional New Holland FleetForce™ telematics for remote monitoring, and various safety features like a rearview camera.
Here are the key specifications of the New Holland C362 Compact Track Loader:
Specifications
- Engine Model
- FPT F5B FL413F
- Power
- 114 hp
- Engine Type
- Turbocharged diesel
- Rated Operating Capacity
- 6,200 lbs (2,812 kg)
- Operating Weight
- 12,100 lbs (5,488 kg)
- Tipping Load
- 12,400 lbs (5,625 kg)
- Breakout Force (Bucket)
- 12,907 lbs (5,854 kg)
- Breakout Force (Lift)
- 12,084 lbs (5,481 kg)
- Travel Speed (Low)
- 5.0 mph (8.0 kph)
- Travel Speed (High)
- 8.7 mph (14.0 kph)
- Lift Path
- Vertical
- Dump Height Reach
- 39 inches (99 cm)
- Max Dump Height
- 100 inches (254 mm)
- Hydraulic Flow (High Flow)
- 41.6 gpm (157 lpm)
- Hydraulic Pressure
- 3,450 psi (238 bar)
- Track Length on Ground
- 74 in (1.88 m)
- Width over Tracks
- 78.3 in (1.99 m)
- Length with Bucket
- 158.3 inches (402 cm)
- Width
- 83.5 inches (212 cm)
- Height
- 83.6 inches (212 cm)
