Kubota M8 Series Tractors Specs & Photos

Kubota M8 Series Tractors

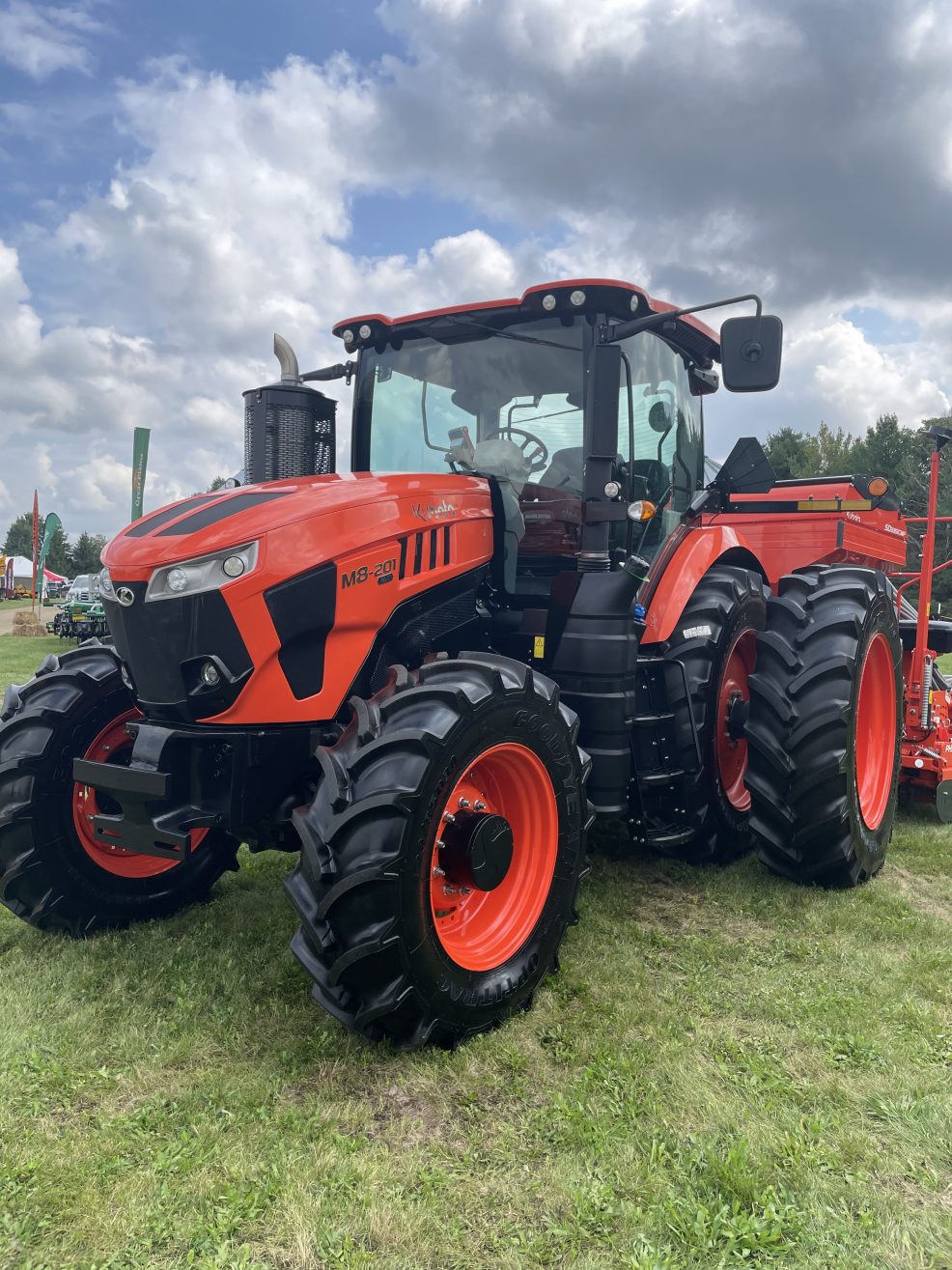

Kubota M8 Tractor Series

The Kubota M8 tractor series marks Kubota’s entry into the large utility and row-crop tractor market. This series includes the M8-181 and M8-201 models, boasting horsepower ratings of 180 HP and 200 HP, respectively. Both tractors are powered by a 6.7-liter Cummins turbocharged diesel engine matted to either a semi-powershift transmission offering 30 forward and 15 reverse speeds or CVT.

The M8 series supports a wide range of attachments and implements, making it suitable for tillage, planting, harvesting, and hauling. Advanced precision farming technology, including GPS and telematics, enhances productivity and efficiency.

Overall, the Kubota M8 tractor series combines power, comfort, and advanced technology, making it a strong option in the large utility tractor market.

Here are the key specifications of the Kubota M8 Series Tractors:

Specifications

Models: M8-181 | M8-201
Engine: 6.7-liter Cummins turbocharged diesel engine
Horsepower (M8-181): 180 hp
PTO Horespower (M8-181): 145 hp
Horsepower (M8-201): 200 hp
PTO Horespower (M8-201): 159 hp
Responsive Power: Additional 25 hp
PTO Type: Electro-Hydraulically Operated

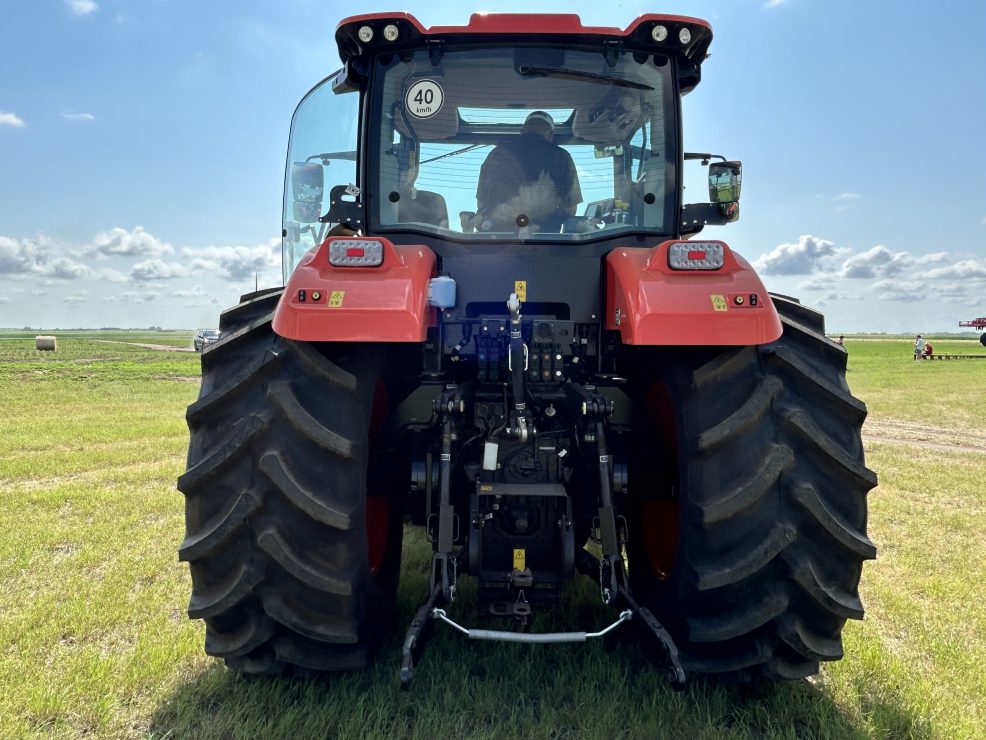

Rear PTO Type: Rear PTO Types 540 - 6 Spline & 1000 - 21 Spline (Optional 1000 - 20 Spline)
Rear PTO Speeds: 540/540E/1000/1000E
Front PTO Type (Optional): Electro-Hydraulically Operated
Front PTO: 1000 - 21 Spline, Clockwise
Transmission: Semi- Powershift (30F x 15R) or CVT
Max. Traveling Speed: 24.8 mph (40km/h)
Driveline Type: 4WD
Hydraulic System: Closed-Centre, Load Sensing (CCLS)
Standard Implement Pump Flow: 31.7 gpm (120 l/min)
Optional Implement Pump Flow: 42.2 gpm (160 l/min)
No. of Rear Remote Valves (Electronic): 3 Valves (Optional 5 Valves)
3-Pt Hitch Category: CAT III/IIIN
Wheel base: 114 in (2895 mm)
Avg Shipping Weight (Semi-Powershift): 17570 lbs (7974 kg)
Avg Shipping Weight (CVT): 18498 lbs (8391 kg)
Height: 128 in (3250 mm)
