The KIOTI TL750 Compact Track Loader combines power and versatility with a 73.6-horsepower diesel engine, a rated operating capacity of 2,300 lbs, and strong hydraulics, making it ideal for heavy-duty construction, landscaping, and agricultural tasks. It features a spacious, ergonomic cab with optional climate control and intuitive joystick controls, enhancing operator comfort and reducing fatigue. Standard LED work lights and two-speed travel capability improve visibility and efficiency, allowing for smooth operation in various conditions. The TL750 Compact Track Loader shares many features and specifications with the KIOTI SL750 Skid Steer Loader.
Key Specifications
Engine
- Model: KIOTI 4HTI4
- Horsepower: 73.6 hp
- RPM: 2,400 rpm
- Fuel: Diesel
- Fuel Capacity: 26.40 gal (100 L)
- Oil Capacity: 2.40 gal (9 L)
Hydraulics
- Lift Arm Path: Vertical
- Lift Control: ISO Pilot
- Tank Capacity: 10 gal (38 L)
- Pressure: 3,335 psi (230 bar)
- Pump Capacity: 21.90 gpm (82.90 lpm)
- Hydraulics Power: 41.80 hp (31.10 kW)
Operating Specs
- Tipping Load: 6,570 lb (2,980 kg)
- Rated Operating Capacity: (50% of Tip Load): 3,285 lb (1,490 kg)
- Rated Operating Capacity: (35% of Tip Load): 2,299.50 lb (1,043 kg)
- Breakout Force, Tilt (Bucket): 5,512 lb (2,500 kg)
- Breakout Force, Lift: 5,016 lb (2,275 kg)
- Traction Force: 6,482 lb (2,940 kg)
- Travel Speed Forward Speeds: 2
- Travel Speed Reverse Speeds: 2
- Travel Speed Min Speed: 4.70 mph (7.50 km/h)
- Travel Speed Max Speed: 7.10 mph (11.50 km/h)
Dimensions
- Length of Track on Ground: 56.50 in (1,435 mm)
- Overall Length of Track: 176.10 in (4,472 mm)
- Length without Bucket: 116.10 in (2,950 mm)
- Length with Bucket: 144.70 in (3,675 mm)
- Height with Cab: 81.90 in (2,080 mm)
- Height Max: 163.80 in (4,160 mm)
- Hinge Pin Height at Max Lift: 130.30 in (3,310 mm)
- Hinge Pin Height at Carry: 203 in (5,156.20 mm)
- Reach at Max Lift and Dump: 43.20 in (1,098 mm)
- Clearance at Max Lift and Dump: 101.80 in (2,585 mm)
- Ground Clearance: 8.70 in (220 mm)
- Departure Angle: 25 °
- Dump Angle Max: 42 °
- Width: 70.90 in (1,800 mm)
- Turning Radius Center to Rear: 67.30 in (1,709 mm)
- Turning Radius Center to Coupler: 57.10 in (1,450 mm)
- Turning Radius Center to Bucket: 87.50 in (2,223 mm)
- Rack Back Angle at Max Height: 88 °
- Bucket Pin Reach at Max Lift: 23.50 in (597 mm)
- Width with Bucket: 74.40 in (1,890 mm)
- Rack Back Angle at Ground Level: 29 °
- Front Tread: 55.10 in (1,400 mm)
- Rear Tread: 55.10 in (1,400 mm)
- Operating weight with operator: 10,061.90 lb (4,564 kg)
- Operating weight without operator: 9,896.60 lb (4,489 kg)
- Track Width: 15.70 in (400 mm)
- Ground Contact Area: 889.70 in² (0.57 m²)

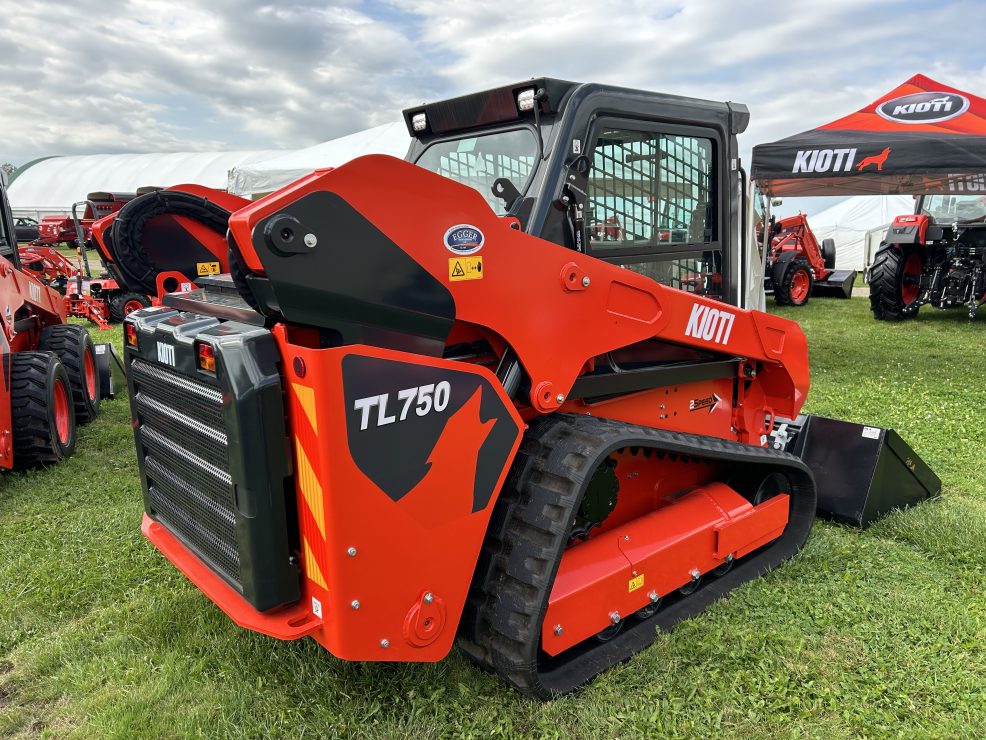

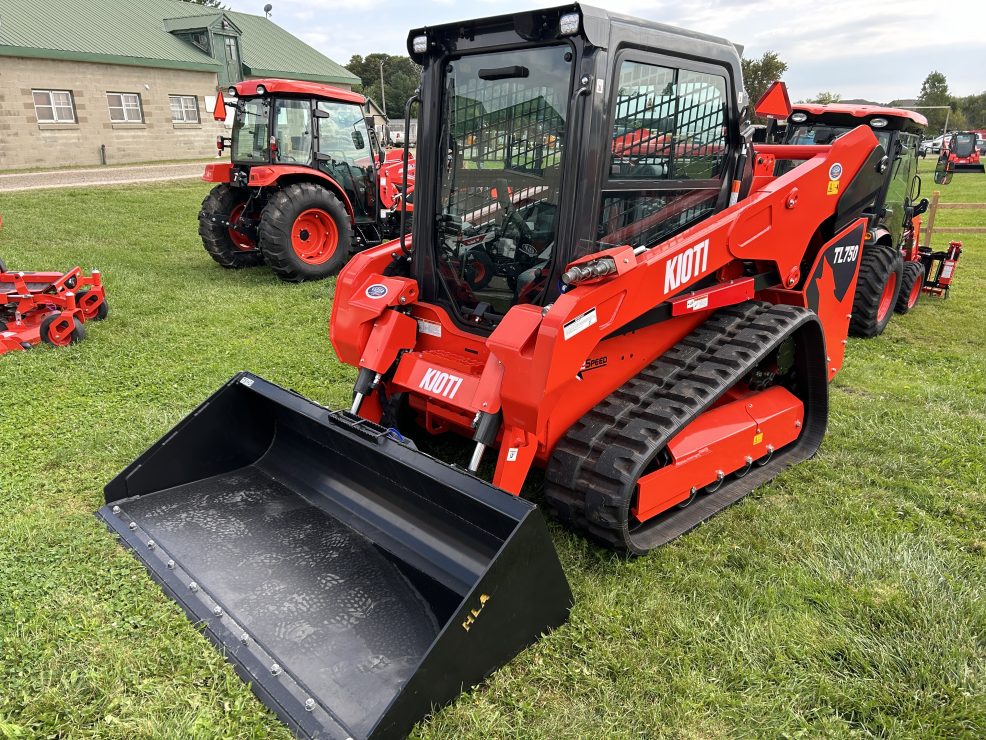

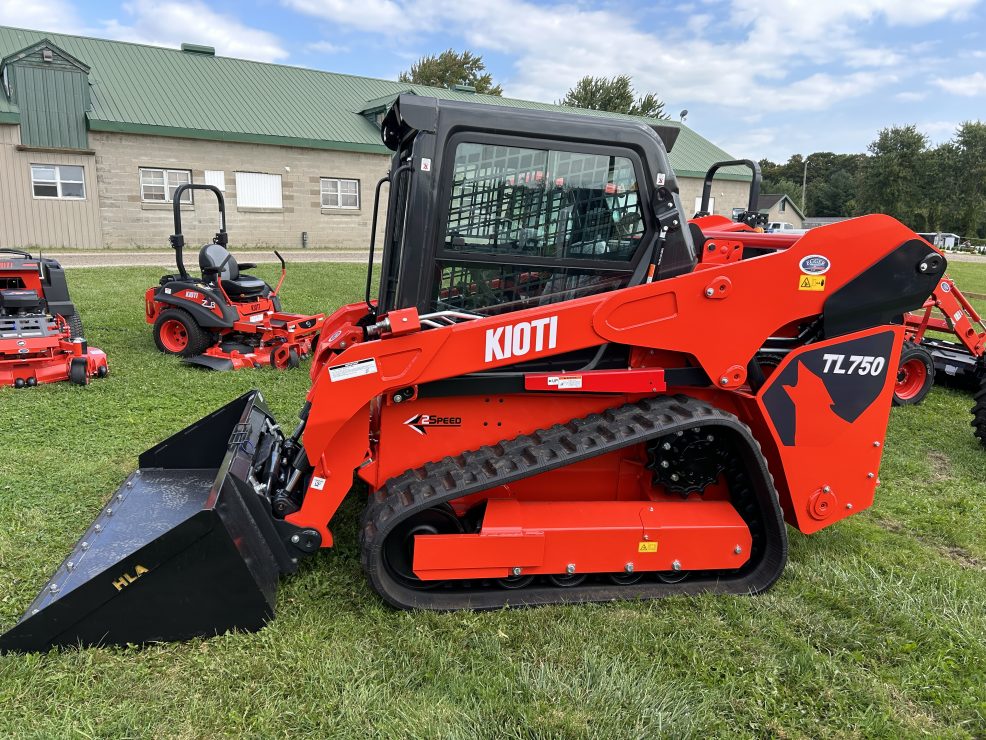

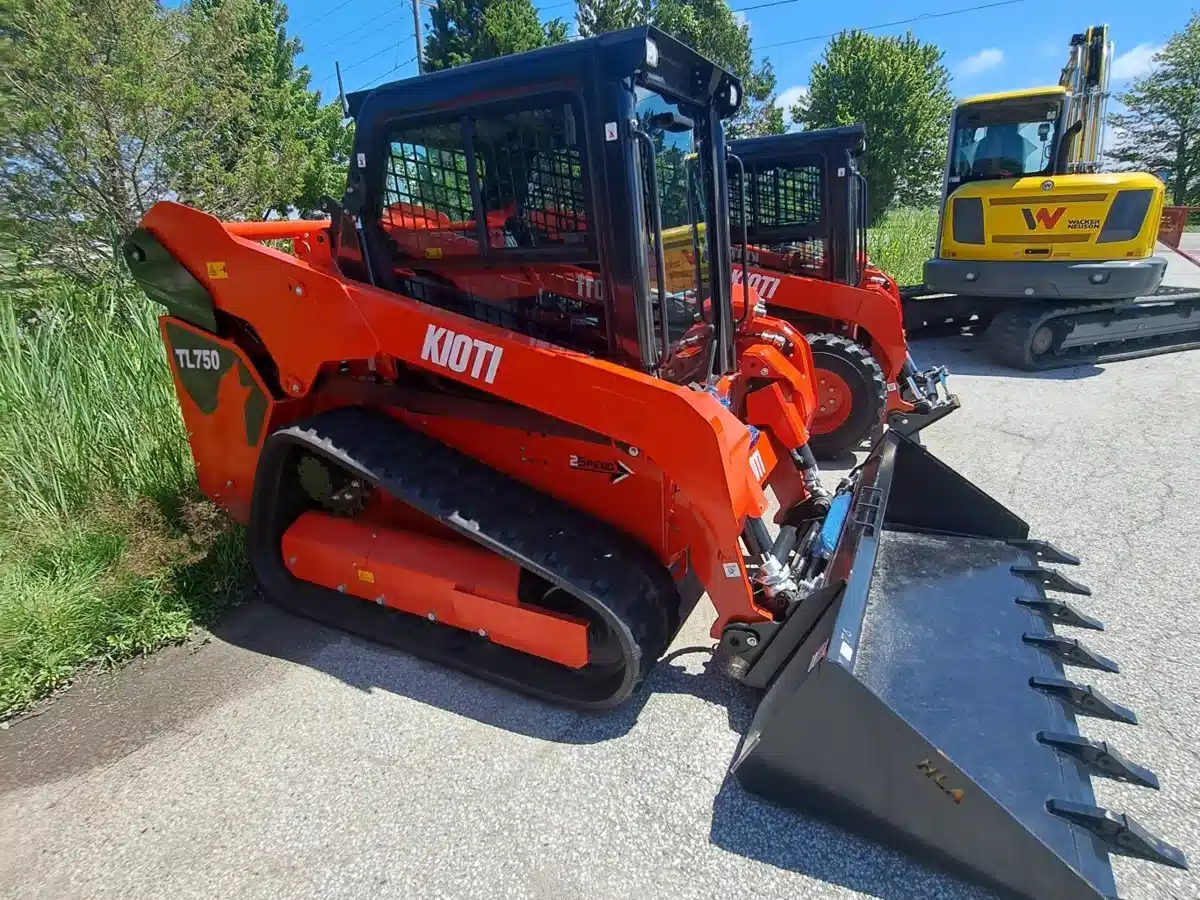

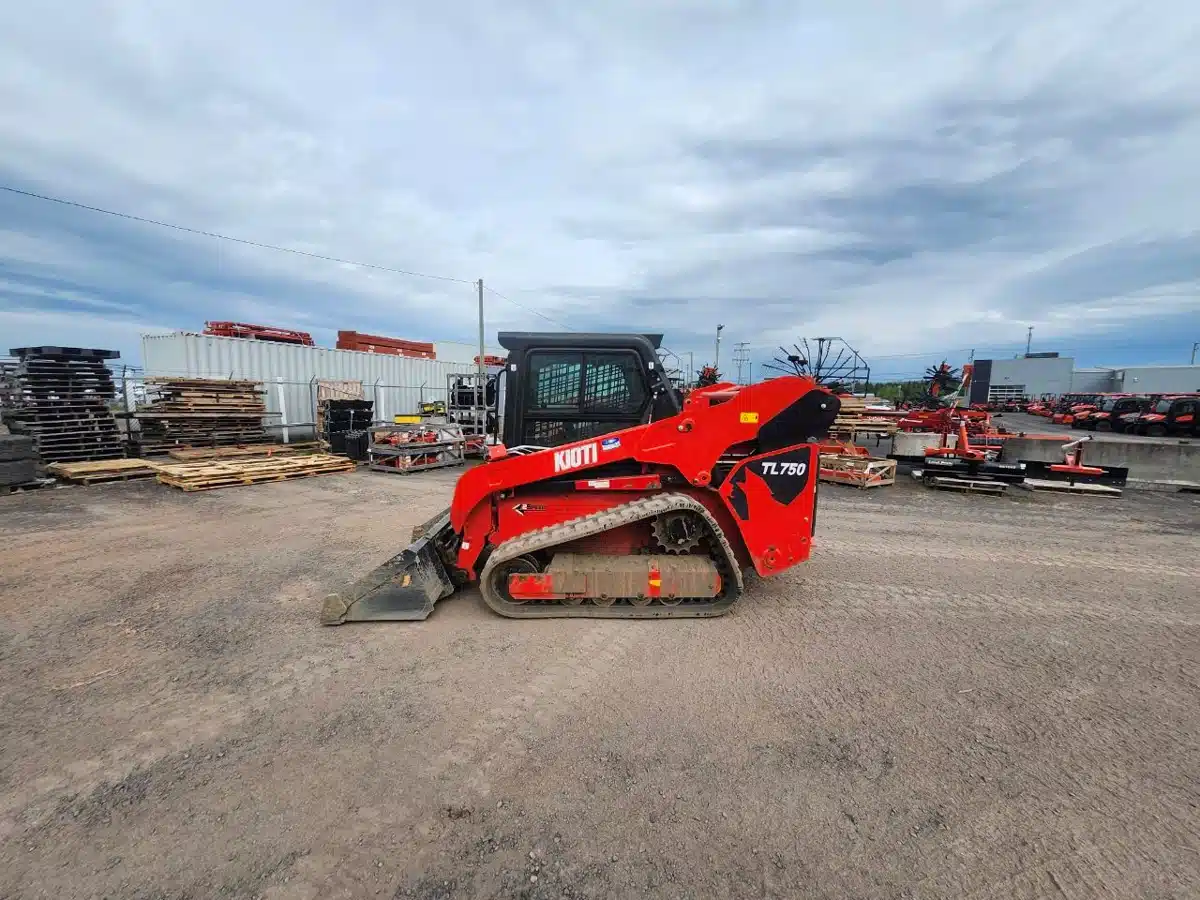

Additional Photos
