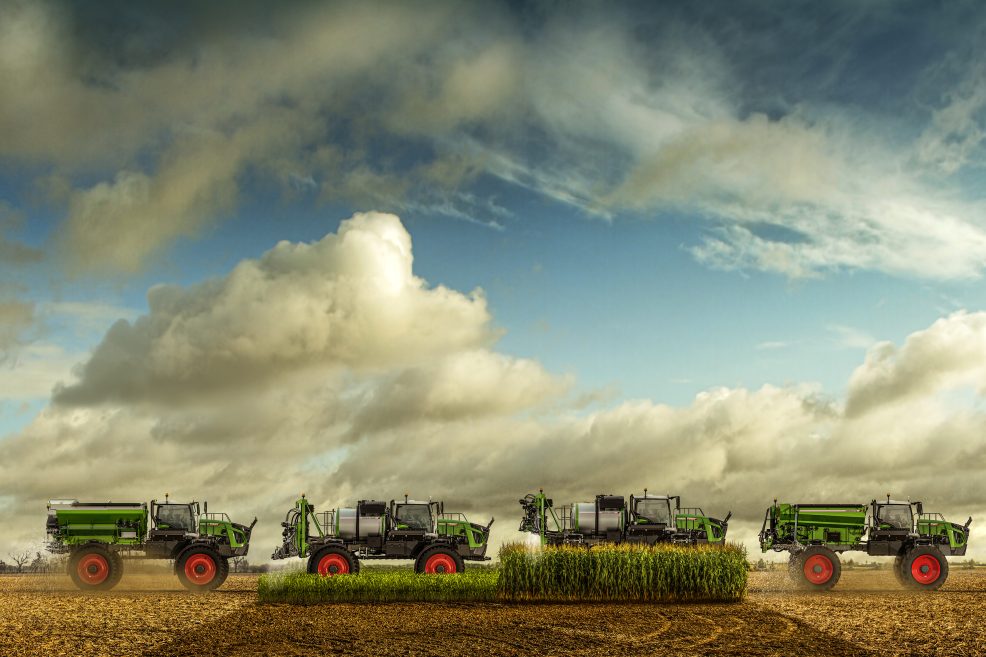

The Fendt Rogator 900 Series Applicators feature adjustable clearance and the ability to switch easily between liquid and dry applications. The 900 Series consists of 5 models, the RG932, RG934, RG937 and high-clearance models, the RG934H and RG937H.
All 900 Series are powered by an AGCO Power 8.4-liter, 6-cylinder engine producing between 315 and 365 horsepower and 1,106 and 1,180 ft. lbs of torque @ 1,400 RPM depending on the model. The AWD SmartDrive system with traction control adapts power distribution to each wheel while the GatorTrack 4-wheel steering systems provides enhanced maneuverability in a variety of terrains.

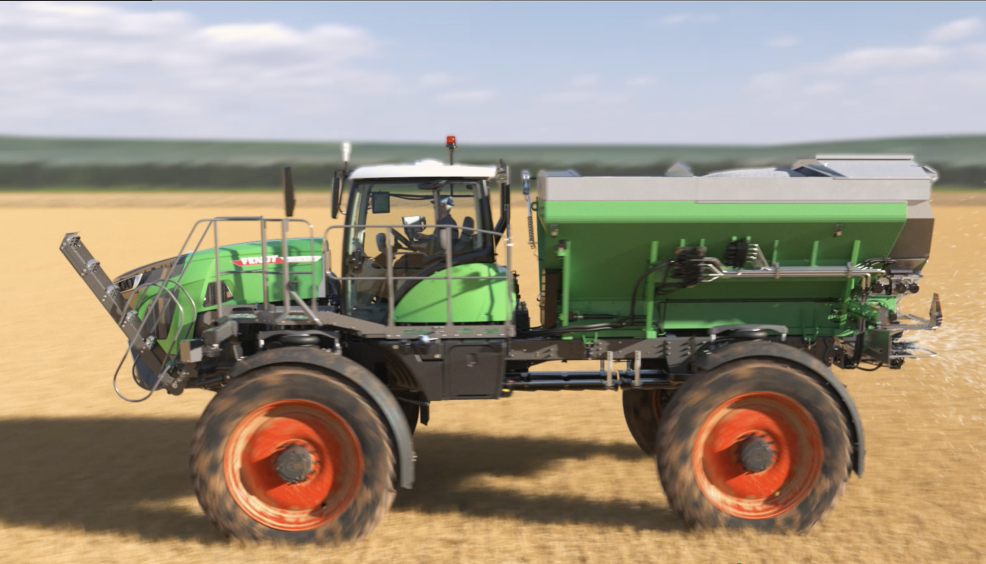

All Rogator 900 Series Applicators offer quick transition from liquid to dry application in under 2 hours. Liquid tank capacity for all models is between 900 and 1,300 gallons. These applicators are equipped with LiquidLogic technology, which maintains circulation and self-primes in 45 seconds, reducing clogging and settling.
A key feature of the 900 Series is its unique rear boom applicator, which can quickly switch between standard and high-clearance modes and offers working widths from 90 to 132 feet (27-40 meters).
Here are the key specifications of the Fendt Rogator Series Applicators:
Specifications
- Series Models (Standard Clearance)
- RG932, RG934, RG937
- Series Models (High Clearance)
- RG934H, RG937H
- Horsepower (RG932)
- 315 HP (350 Peak HP)
- Horsepower (RG934, RG934H)
- 339 HP (370 Peak HP)
- Horsepower (RG937, RG937H)
- 365 HP (392 Peak HP)
- Torque (RG932)
- 1,106 ft. lbs
- Torque (RG934, RG937)
- 1,180 ft. lbs
- Engine
- AGCO Power 8.4L 6-cylinder
- Tank Size
- 900 - 1,300 gal
- Applications
- Liquid and Dry
- Standard-volume (liquid)
- 186 GPM
- High-volume (liquid)
- 299 GPM
- Boom width (steel boom)
- 90/100/120 ft. (27.4/30.5/36.6 m)
- Boom width (aluminum boom)
- 132 ft (40.2 m)
- Nozzle Spacing
- 132'–20" with OptiStop
- Field Speed (low clearance)
- 26 MPH (42 KPH)
- Field Speed (high clearance)
- 15 MPH (24 KPH)
- Road Speed (RG932, RG934, RG934H)
- 33 MPH (53 KPH)
- Road Speed (RG932, RG937H)
- 36 MPH (58 KPH)
- Fuel Capacity
- 150 gal. (56.7 L)
- Diesel Exhaust Fluid Capacity
- 17.5 gal. (66.2 L)
- Hydraulic Reservoir
- 36 gal. (136 L)
