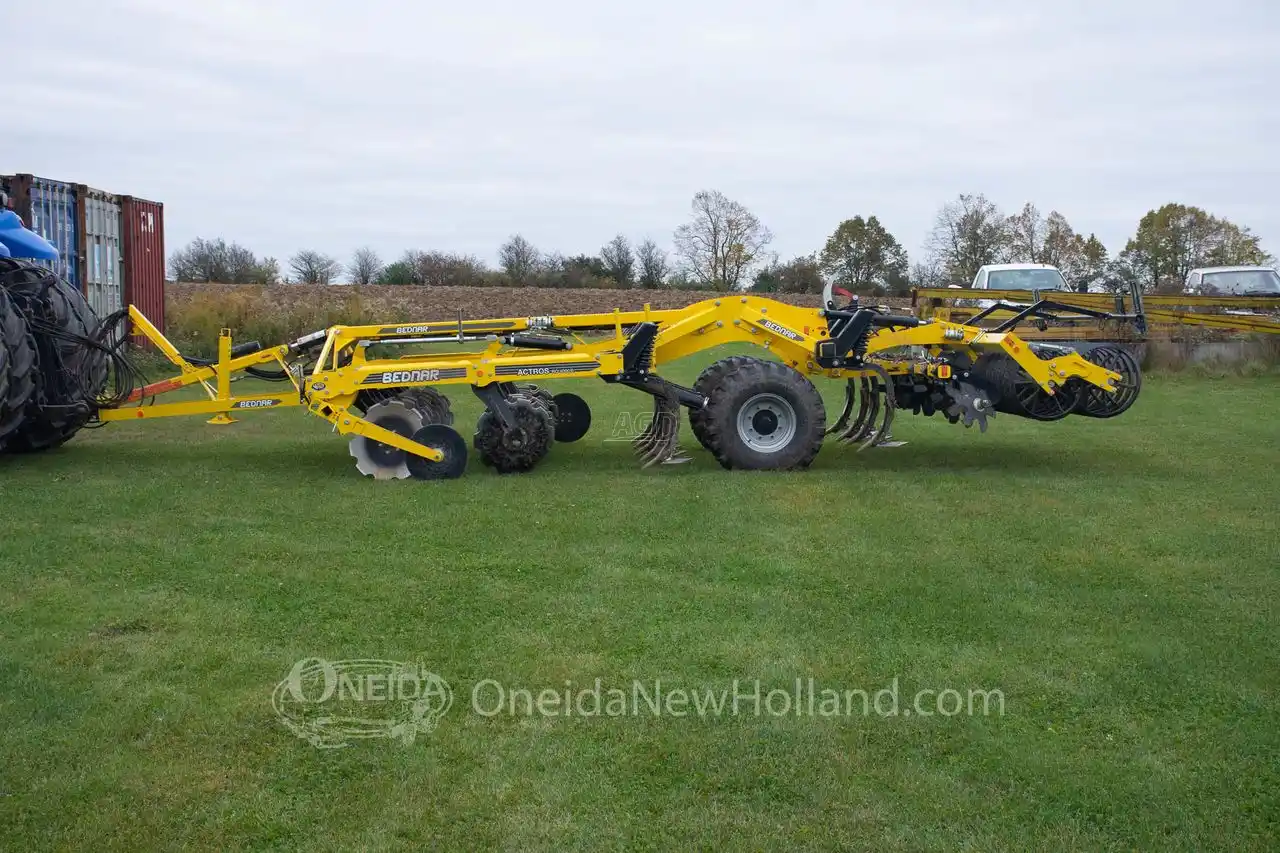

New Bednar Actros RO 4000R Cultivator
Add as favouriteListing Details
- AgDealer Equipment:
- 1240119
- Stock Number:
- 024751
- Region:
- Caledonia, Ontario |
- Category:
- N/A
- Subcategory:
- N/A
- Manufacturer:
- Bednar
- Model Year:
- N/A
- Series:
- N/A
- Model:
- Actros RO 4000R
- Drive Type:
- N/A
- Horsepower:
- N/A
- Separator Hours:
- N/A
- Hours:
- N/A
- Description:
-
DRAWBAR
VERTICAL DOUBLE SPRING AUTO-
RESET SYSTEM
MAINTENANCE-FREE DISC BEARINGS
2 ROWS OF DISCS 690 X 6 MM
2 ROWS OF TINES
LEVELLING DISCS
DOUBLE U-RING PACKER
SIDE SHIELDS
TRANSPORT WHEELS 14.5/80-18
A combined cultivator for cutting crop
residue and intense loosening up to a
depth of 35 centimetres in one pass.
TWO OPERATIONS, ONE PASS
The efficient combination of a disc and
chisel section provides two operations in
one pass.
The high machine clearance, and the
spacing of the individual discs and chisels
are modified for incorporation of large
quantities of organic matter in the form of
catch crop, crop residue, or manure.
- The hydraulic drawbar contributes to
perfect terrain tracing.
- The large discs with a diameter of 690 ×
6 mm are used for cutting and
incorporating crop residue up to a depth of
18 centimetres.
- The mounting of two discs on one tine
provides twice the space for rubber
segment protection. The rubber segments
absorb shocks formed during soil
cultivation.
- Chisel working section ensures quality
undercutting and mixing of crop residue
with soil up to a depth of 35 centimetres.
- Each tine is individually protected by
vertical NON-STOP spring protection with
the force of 550 kg per chisel.
