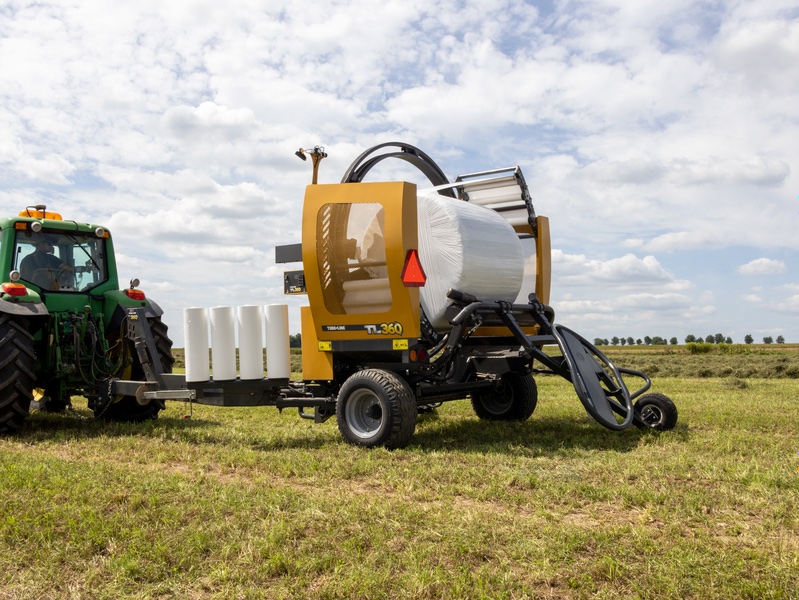

The Tubeline TL360 Bale Wrapper is a high speed bale-wrapping solution designed for round bale producers/farmers who need to preserve hay, silage, or straw. The TL360 features a trailed, self-loading design that allows for continuous operation, with the ability to pick up and wrap bales in one go.
Here are the technical specifications for the Tubeline TL360 Bale Wrapper:
- Type: Trailed, Self-Loading Bale Wrapper
- Bale Compatibility: Designed to wrap round bales up to 4′ x 5.5′ or 5′ x 4.5′ in diameter
- Film System: Twin wrap kit that uses two rolls of film simultaneously for increased strength
- Cut and Hold System: Integrated system to ensure the film is ready for the next bale
- Optional Equipment:
- Bale Tipper: Tips bales on their side for easier handling
- LED Working Lights: Enhances visibility in low-light conditions
- Dimensions:
- Length: 164 inches
- Width: 119 inches
- Height: 133 inches
- Weight: 5,100 lbs (2,313 kg)
- Hydraulic Requirements: 16 GPM (gallons per minute) hydraulic flow
- Tractor Power Requirement: Minimum 60 HP (horsepower)
- Hitch Type: Clevis
- Control System: Includes external control panel with optional in-cab controls for convenience
- Counters: Equipped with both resettable and lifetime bale counters
The Tubeline TL360 Bale Wrapper will be part of the Equipment Demonstrations at Canada’s Outdoor Farm Show 2024. Check out all the equipment available!
