The New Holland SP410F Sprayer is an agricultural self propelled sprayer featuring a 1,200, 1,400, or 1,500 gallon (4,542, 5,300 or 6,056) litre) tank with boom lengths up to 135 feet (41 meters). Powered by a 382 horsepower (412 Max HP), 8.7-liter engine, the SP410F has up to 78 inches of crop clearance and four-wheel independent hydraulic suspension. The newly updated cab features the PLM

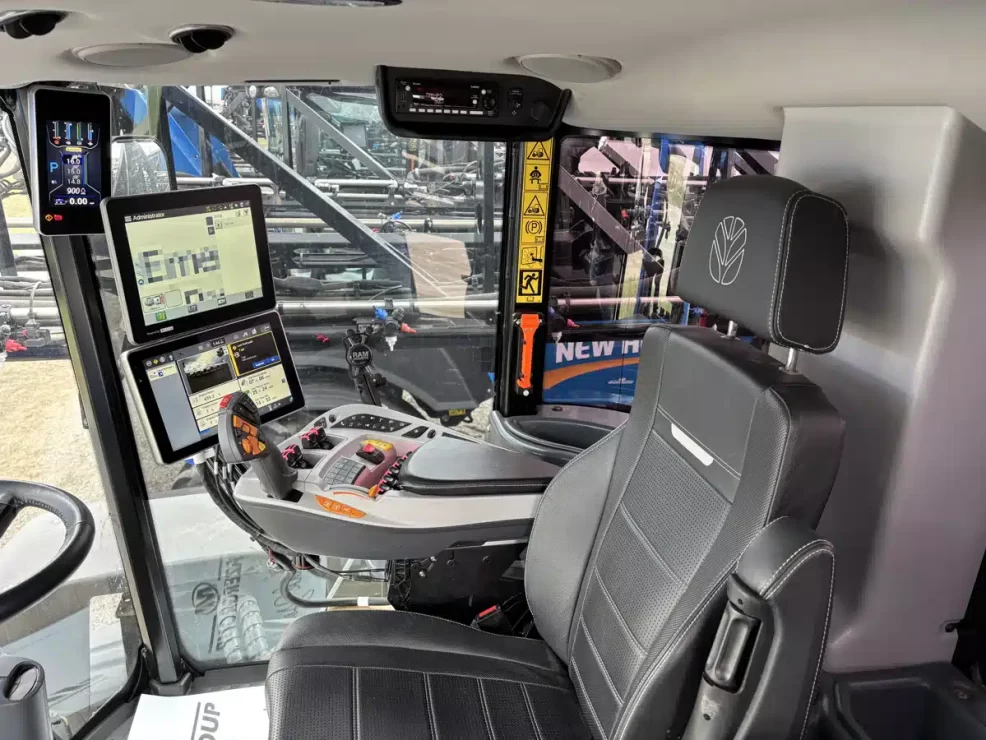

Intelligence™ Integrated SideWinder™ Ultra armrest for improved operator comfort and productivity.
Price Starting at $723,249 USD
Here are the key specifications of the New Holland SP410F Sprayer:
Specifications
- Horsepower
- 382 hp
- Max Horsepower
- 412 hp
- Engine
- FPT® Cursor 9 / 8.7 Liter Tier 4B
- Drive System
- Hydrostatic 4WD
- Spray Speed Range
- Full range with 4 user defined speed ranges
- Tank Capacity
- 1200, 1400 or 1600 gal (4542, 5300 or 6056 L)
- Tank Material
- Stainless Steel
- Fuel Capacity
- 150 gal (568 L)
- DEF Tank Capacity
- 24 gal (91 L)
- Mono Boom Width
- 90/60, 100/60 or 120/70 ft (27.4/18.3, 30.5/18.2 or 36.6/21.3 m)
- Truss Boom Width (ft. (m))
- 120/73, 132/73 or 135/73 ft (36.6/22.3, 40.2/22.3 or 41.1/22.3 m)
- Spray-Air Boom Width (ft. (m))
- 90, 100 or 120 ft (27.4, 30.4 or 36.6 m)
- Nozzle Bodies
- 3+1 Way Turret / 5 Way Turret / IntelliSpray with 3+1 Turret
- Rinse System
- Standard electric controls or optional Auto Rinse 150 gal. (568 L) poly tank with 2 in. (5.08 cm) fill connection
- Crop Clearance
- 74 or 76 in. (187.96 or 193.04 cm)
- Shipping Height
- 154 in. (391 cm)
- Shipping Width Mono Boom
- 145 in. (368 cm)
- Shipping Width Truss Boom
- 173 in. (439.4 cm)
See all New Holland SP410F Sprayers currently for sale
Visit our New Holland landing page to find dealers, stay up to date on the latest news, read reviews and watch the latest farm equipment videos.
For complete details view the product brochure.
Additional Photos
