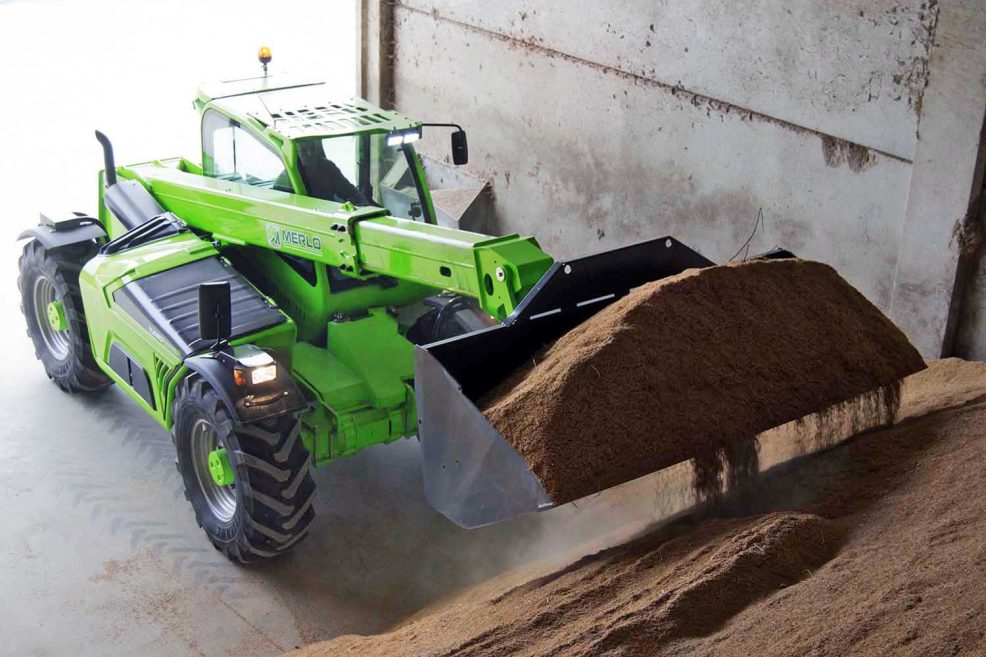

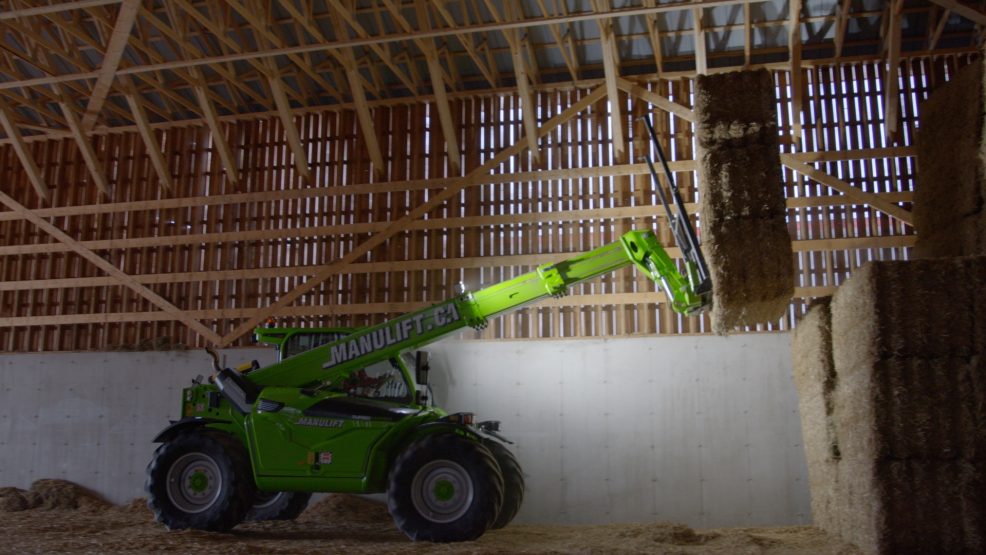

The Merlo Turbofarmer 33.7 is a compact telehandler designed for agricultural and construction applications. It features a lifting capacity of 7300 lbs and a maximum lifting height of 21′7″. Powered by a 115 HP engine Deutz TCD3.6 engine, the Turbofarmer 33.7 offers efficient performance with features like the EPD (Eco Power Drive) system, which optimizes engine speed and reduces fuel consumption.
The Merlo Turbofarmer 33.7 features a hydrostatic transmission, along with four-wheel drive and three steering modes (front, coordinated, and crab) for maneuverability in tight spaces. The ergonomic cab design provides 360-degree visibility, and air conditioning.
Here are the technical specifications for the Merlo Turbofarmer 33.7 Telehandler:
Powertrain
- Deutz TCD3.6 Engine
- 4-cylinder, 115 HP (85 kW) engine
- Max Speed: 25 MPH
- Fuel Tank Capacity: 22.5 Gal
- Hydrostatic Transmission
Performance
- Weight: 14330 LBS
- Maximum Load Capacity: 7300 LBS
- Lift Weight: 21′7″
- Maximum Reach: 11′5″
- Lift Height at Max Load Capacity: 17′3″
- Reach at Max Load Capacity: 4′6″
- Load Capacity at Max Lift Height: 5000 LBS
- Load Capacity at Max Reach: 2900 LBS
- Boom Section: 2
Hydraulic System
- Hydraulic Pump: LS+FS
- 33 GAL/MIN at 3046 PSI
- Hydraulic Oil Tank Capacity: 22.5 GAL
- Aux Hydraulic Service on Boom: Yes
Configuration:
- Work Lights on Cab
- Tac-Lock
- Two Floating Forks
- Pedal Inching Control
- 4 Wheel Drive
- All Wheel Steering
- Three Steering Way
- Tires: 405/70-24 400/70 24”
Dimensions:
- Length: 170″
- Wheelbase: 108″
- Ground Clearance: 11″
- Width: 83″
- Cabin Width: 40″
- Height: 84″
- Turning Radius at Forks: 183″
Attachments: Compatible with a variety of Merlo attachments for different agricultural and construction needs.
Additional Photos
