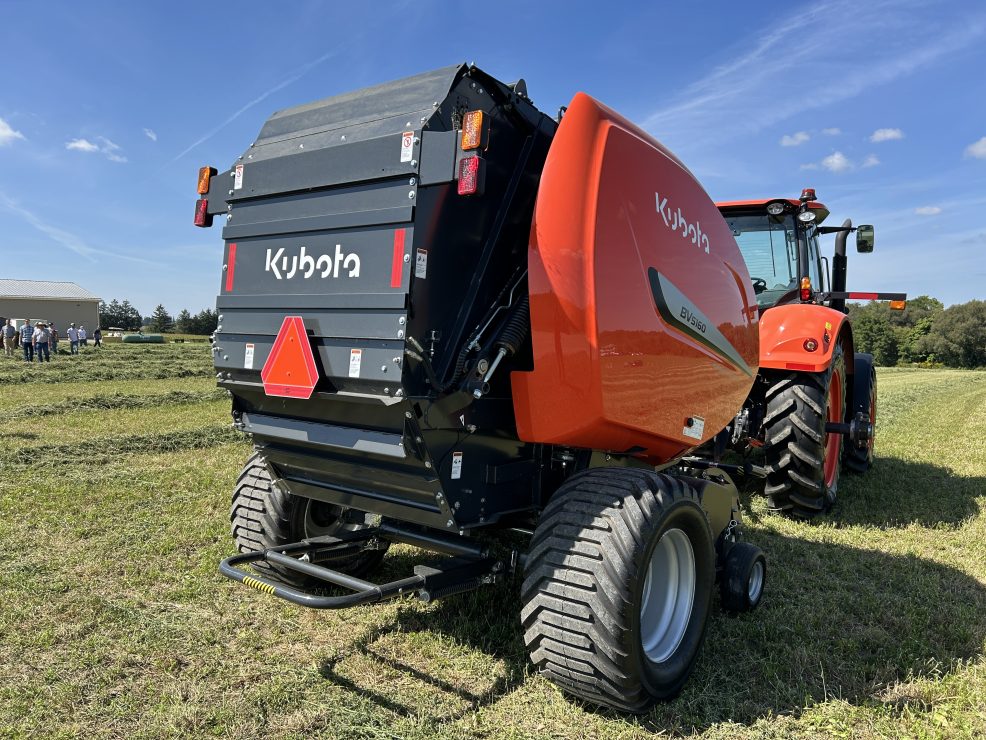

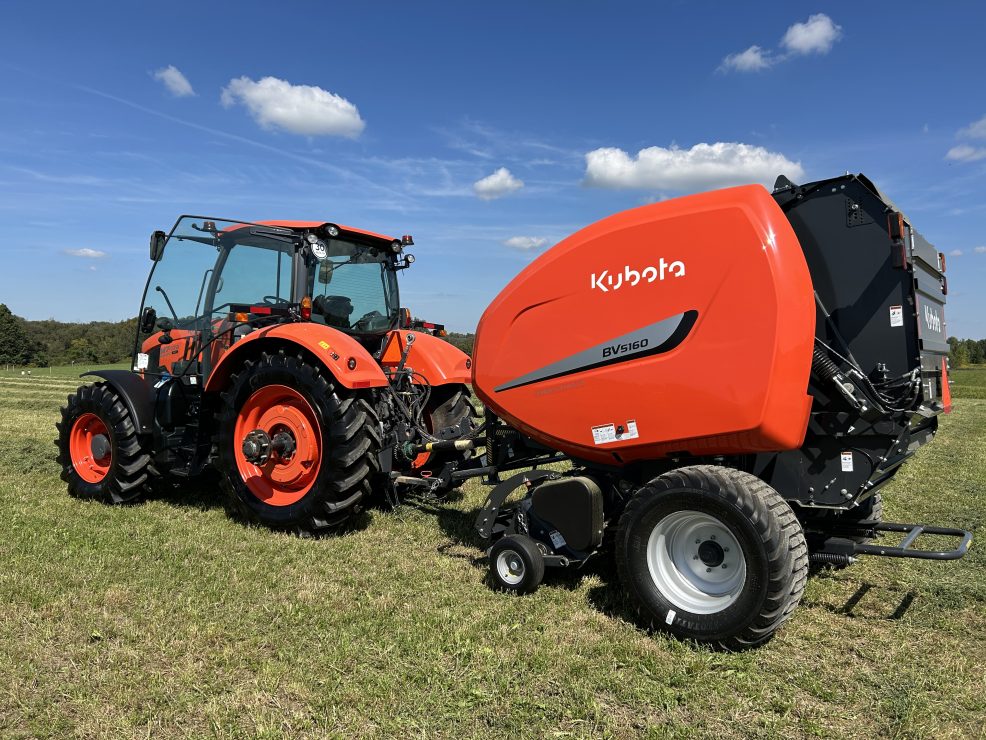

The Kubota BV5160 SC14 Round Baler incorporates knowledge built up over many years in the baler business, with true multi-crop performance in silage, hay and straw. The defining feature of BV5160 series balers is the ability to produce bales in a wide variety of crop conditions, from wet silage right through to dry straw. Smart ‘intelligent density’ allows bales to be tailored to match all requirements. Key features include:
- Variable Chamber Design: Allows for adjustable bale diameters from 0.6m to 1.65m, accommodating various crop types and conditions.
- SuperCut-14 Knife Rotor: Standard 14-knife cutting system ensures fast and efficient material flow, producing dense and airtight bales ideal for silage applications.
- PowerBind Net Wrap System: Patented net wrap technology provides quick and reliable net injection, enhancing bale protection and reducing wrapping time.
- Intelligent Density 3D: Offers pre-selection of bale density for each zone of the bale, allowing customization based on specific needs.
Key Specifications
Weight and Dimensions
- Length: 176″ (4.48 m)
- Width: 99″ (2.52 m)
- Height: 106″ (2.70 m)
- Weight: 7165 (3250)
Bale Chamber
- Diameter Min: 24″ (0.60 m)
- Diameter Max: 65″ (1.65 m)
- Bale Width: 47″ (1.20 m)
- Bale Formation: 5 Belts + 3 Rol.
- Belt Width: 8” (5/ 220 m)
- Bale Ramp
Binding (PowerBind)
- Net only variant: 3 rolls
- Net & Twine variant: 8 balls+3rolls
Pickup
- Working Width: 86″ (2.20 m)
- Number of Tine Rows: 5
- Tine Spacing: 2.36″ (0.60)
- Bale Formation: 5 Belts + 3 Rol.
- Belt Width: 8” (5/ 220 m)
- Roller crop press
- Pneumatic Gauge Wheel
Intake System
- SuperCut 25 knives
- Number of knives: 14
- Knife protection (on each knife)
- Knife group selection
- Drop floor
Power and Performance
- Reversible drawbar
- PTO: 540 rpm
- Min. power requirement: 100 hp
- 1.25” Main drive chain
- W-A PTO shaft
- P/U Cam clutch protection
