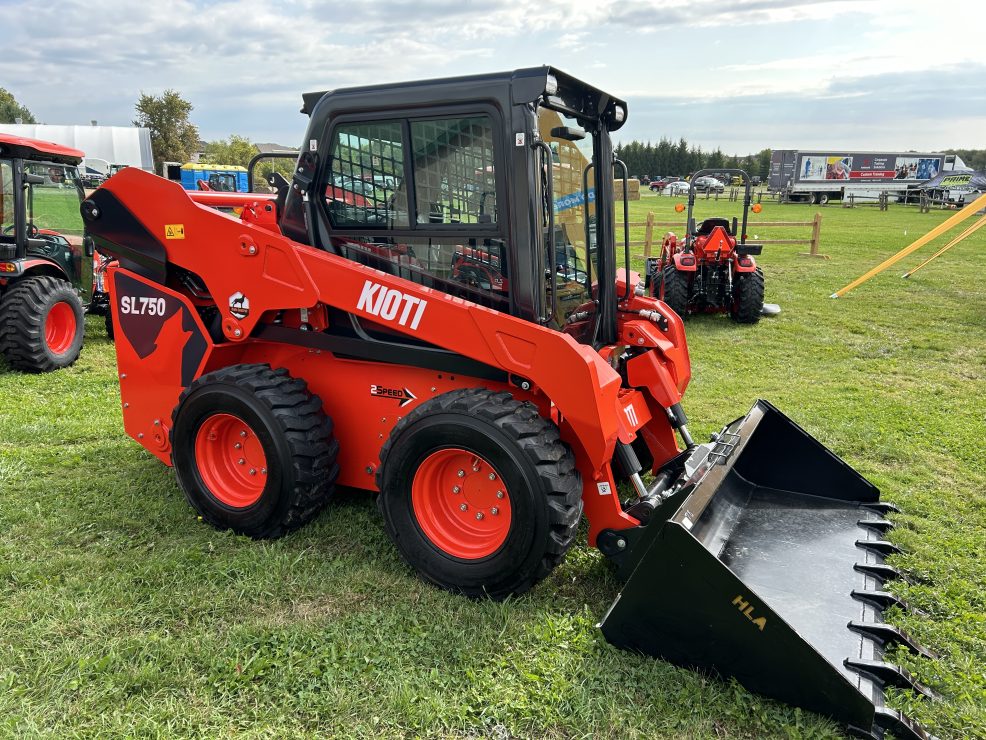

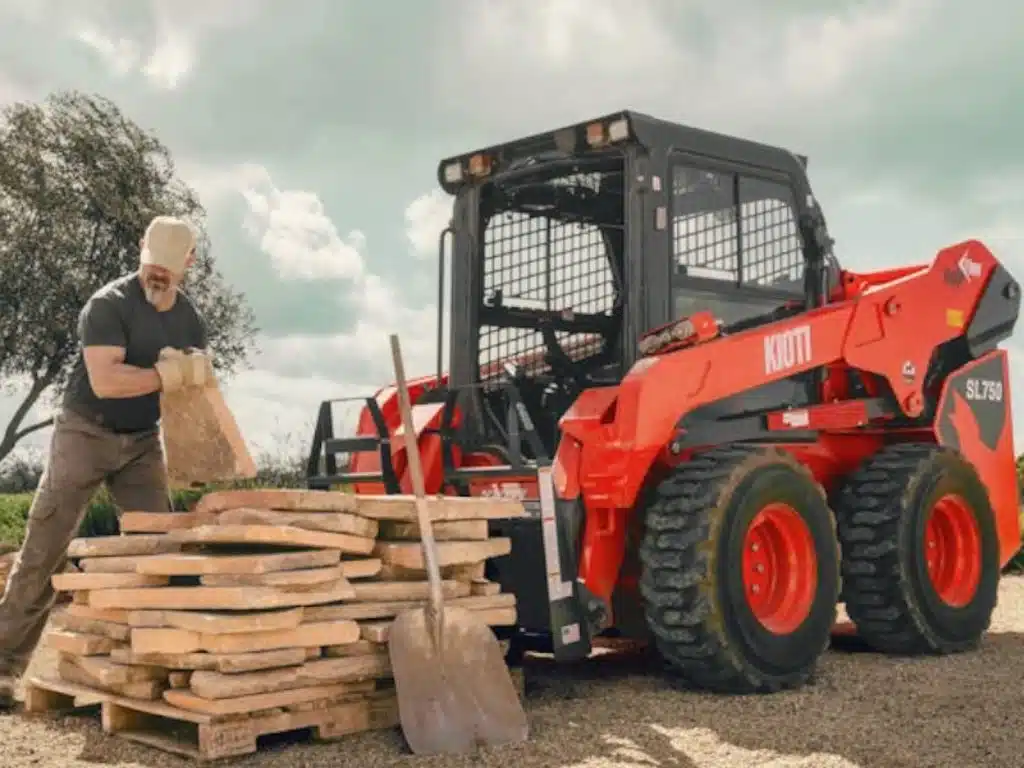

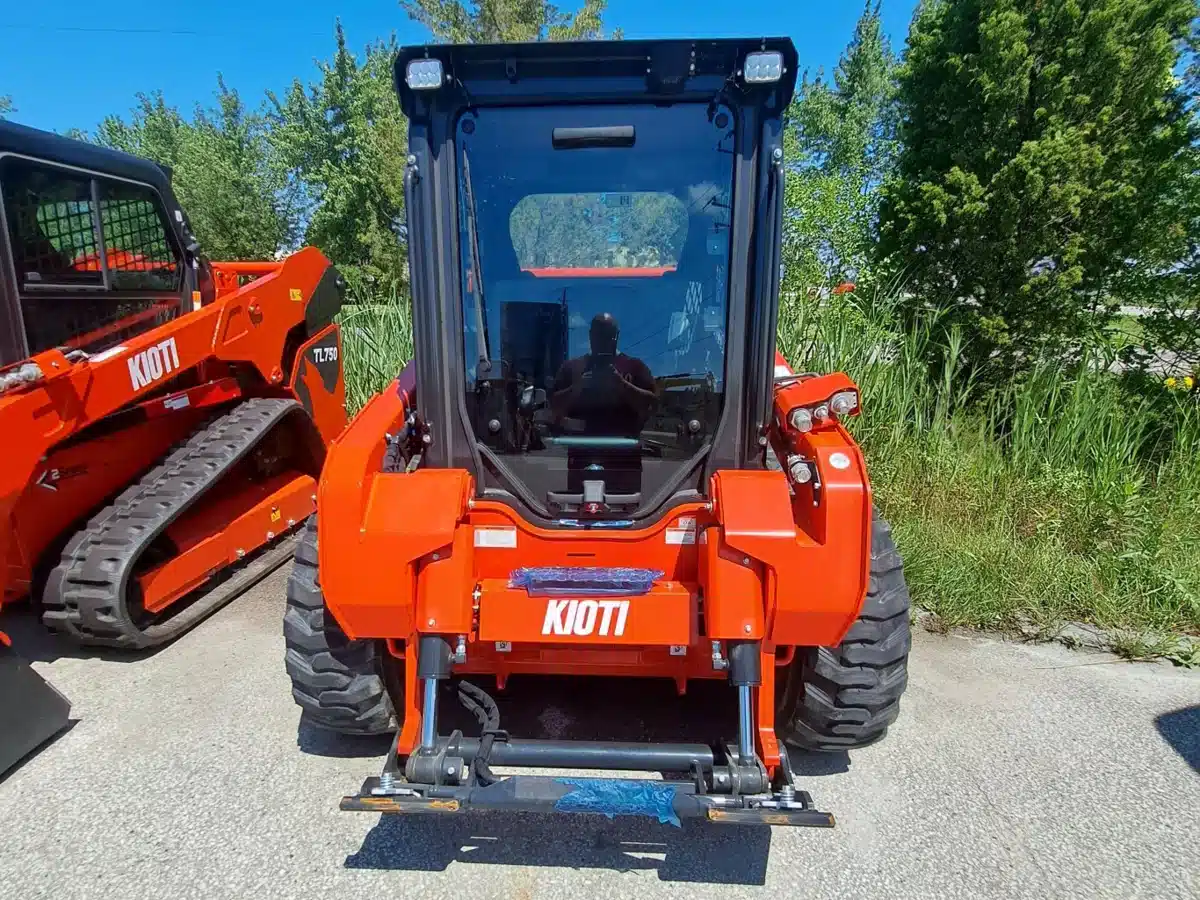

The KIOTI SL750 Skid Steer Loader is a machine designed for heavy-duty applications across construction, agriculture, and landscaping. It features a powerful engine with optimal horsepower and torque for excellent performance and efficiency. The SL750 is powered by a 74-horsepower KIOTI engine and features vertical lift arms with a rated operating capacity of 2,690 lbs. It includes a two-speed travel system, hydraulic pilot joystick controls, and a rearview camera integrated into a digital display for enhanced operator comfort and control. Key specifications include a tipping load of 5,380 lbs, a maximum speed of 12.05 mph, and an operating weight of 8,633 lbs. The loader also offers an optional enclosed cab with HVAC and LED lights for improved visibility​. The SL750 Skid Steer Loader shares many features and specifications with the KIOTI TL750 Compact Track Loader.
Key Specifications
Engine
- Model: KIOTI 4HTI4
- Horsepower: 73.6 hp
- RPM: 2,400 rpm
- Fuel: Diesel
- Fuel Capacity: 26.40 gal (100 L)
- Oil Capacity: 2.40 gal (9 L)
Hydraulics
- Lift Arm Path: Vertical
- Lift Control: ISO Pilot
- Tank Capacity: 10 gal (38 L)
- Pressure: 3,335 psi (230 bar)
- Pump Capacity: 21.90 gpm (82.90 lpm)
- Hydraulics Power: 41.80 hp (31.10 kW)
Operating Specs
- Tipping Load: 5,380 lb (2,440 kg)
- Rated Operating Capacity: (50% of Tip Load): 2,690 lb (1,220 kg)
- Rated Operating Capacity: (35% of Tip Load): 1,883 lb (854 kg)
- Breakout Force, Tilt (Bucket): 5,512 lb (2,500 kg)
- Breakout Force, Lift: 5,016 lb (2,275 kg)
- Traction Force: 6,347 lb (2,879 kg)
- Travel Speed Forward Speeds: 2
- Travel Speed Reverse Speeds: 2
- Travel Speed Min Speed: 7.15 mph (11.50 km/h)
- Travel Speed Max Speed: 12.05 mph (19.40 km/h)
- Chain Box Capacity: 3.40 gal (13 L)
Dimensions
- Wheelbase Length: 47.20 in (1,200 mm)
- Length without Bucket: 116.50 in (2,960 mm)
- Length with Bucket: 114.70 in (3,675 mm)
- Height with Cab: 81.20 in (2,063 mm)
- Height Max: 160.20 in (4,068 mm)
- Hinge Pin Height at Max Lift: 126.60 in (3,215 mm)
- Hinge Pin Height at Carry: 8.30 in (212 mm)
- Reach at Max Lift and Dump: 37.40 in (949 mm)
- Clearance at Max Lift and Dump: 97.40 in (2,473 mm)
- Ground Clearance: 7.70 in (195 mm)
- Departure Angle: 25 °
- Turning Radius Center to Rear: 70.40 in (1,788 mm)
- Turning Radius Center to Coupler: 60.90 in (1,548 mm)
- Turning Radius Center to Bucket: 85 in (2,158 mm)
- Rack Back Angle at Max Height: 88 °
- Bucket Pin Reach at Max Lift: 16.30 in (414 mm)
- Width with Bucket: 74.40 in (1,890 mm)
- Rack Back Angle at Ground Level: 29 °
- Front Tread: 59.60 in (1,513 mm)
- Rear Tread: 59.60 in (1,513 mm)
- Operating weight with operator: 8,633 lb (3,916 kg)
- Operating weight without operator: 8,468 lb (3,841 kg)
