The John Deere 410R Sprayer is a high efficiency agricultural sprayer featuring a 1,000 gallon (3,800 liter) tank and a boom that extends up to 132 feet (40.23 meters) depending on options included. Powered by a 310 horsepower (330 Max HP), 9.0-liter engine, it offers a transport speed of up to 35 mph (56.3 km/h) and spray speed ranges up to 25 mph (40.2 km/h). The 410R is equipped with See & Spray™ technology for targeted weed control and the ExactApply™ nozzle control system for precise application across various speeds and conditions. These features enhance operational efficiency and help to reduce herbicide use. Additional features include the Hydrostatic 4WD powertrain, and BoomTrac™ Pro 2 with five sensors.
Here are the key specifications of the John Deere 410R Sprayer:
Specifications
- Horsepower
- 310 hp
- Max Horsepower
- 330 hp
- Engine
- 9.0L engine
- Drive System
- Hydrostatic 4WD
- Spray Speed Range
- 0 to 25 mph (0 to 40.2 km/h)
- Tank Capacity
- 1,000 gal (3,800 L)
- Transport Speed (max)
- 35 mph (56.3 km/h)
- Fuel Capacity
- 149.2 gal (565 L)
- Boom Length Options
- 90, 100, 120 or 132 ft (27.4, 30.5, 36.6, or 40 m)
- Automatic Boom Height
- BoomTrac™ Pro 2 - five sensor (optional)
- Boom Sections
- 7, 8, 11, 13 (depending on boom length)
- Boom Material
- Steel or carbon fiber
- Plumbing Material
- Stainless steel / Optional: Polyethylene
- Ground Height Adjustment
- 19.6 to 96.5 in. (50 to 245 cm)
- Nozzle Spacing
- 15 or 20 in. (38.1 or 51 cm)
- Ground Clearance
- 58 in. (147.3 cm)
- Suspension
- Dual-strut independent wheel air-ride suspension
- Crop clearance with standard tires
- 60 in. (152 cm)
- Dry Compatible
- Yes: 200 cu ft (5.7 cu m)
- Hydraulic Reservoir Capacity
- 26 gal. (98.4 L)
- Total Weight with 90-ft boom
- 29,707 lb (13,475 kg)
- Total Weight with 100-ft boom
- 29,873 lb (13,550 kg)
- Total Weight with 120-ft boom
- 30,435 lb (13,805 kg)
- Total weight with 120-ft carbon fiber boom
- 120 ft (36.6 m) boom: 29,330 lb (13,304 kg)
- Total weight with 132-ft carbon fiber boom
- 132 ft (40.2 m) boom: 29,451 lb (13,359 kg)
- Front Tires
- 320/90 R46, 380/90 R46, or 420/80 R46
- Rear Tires
- 320/90 R46, 380/90 R46 CFO, or 420/80 R46
- Flotation Tires
- 520/85R38 or 620/70R38 (field installed only)
See all John Deere 410R Sprayers currently for sale
Visit our John Deere landing page to find dealers, stay up to date on the latest news, read reviews and watch the latest farm equipment videos.
For complete details view the product brochure.

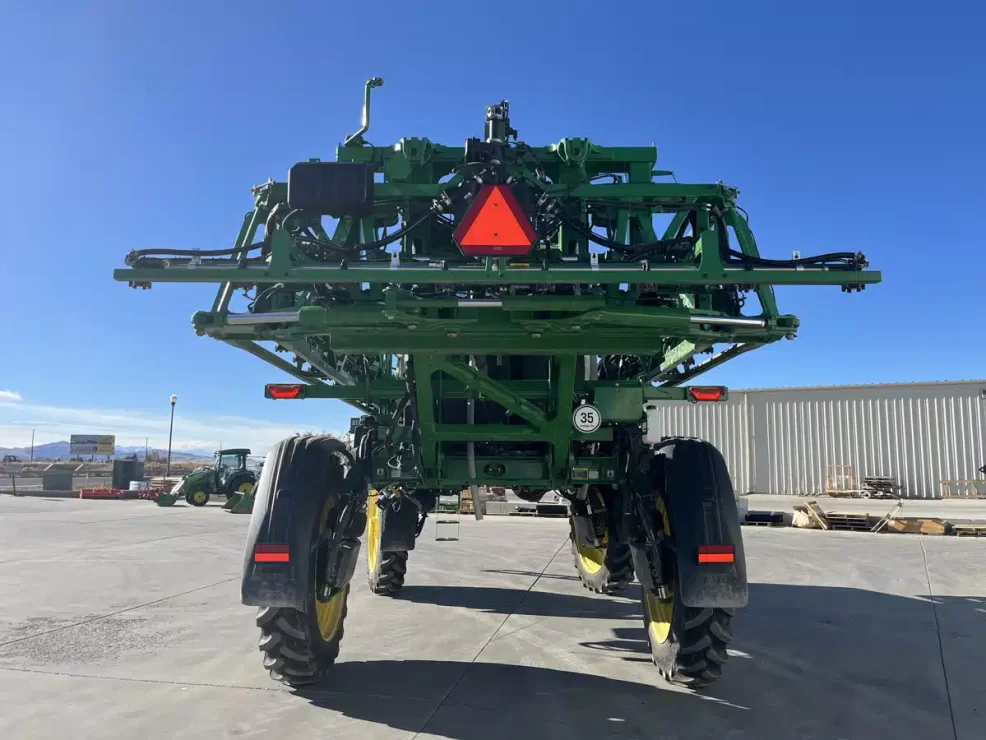

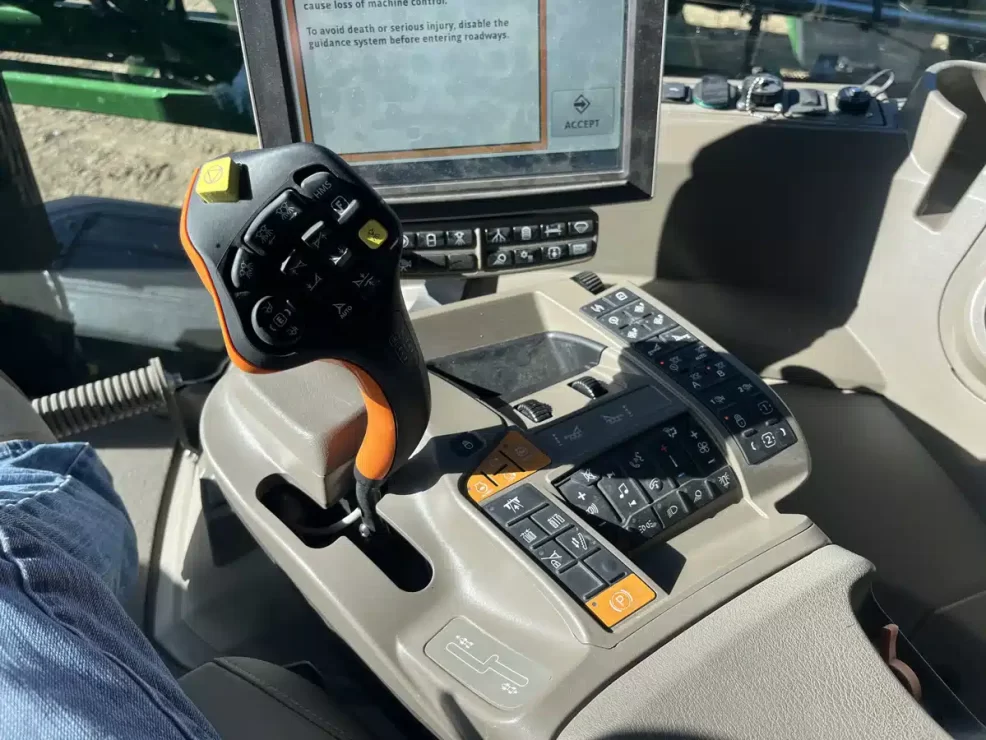

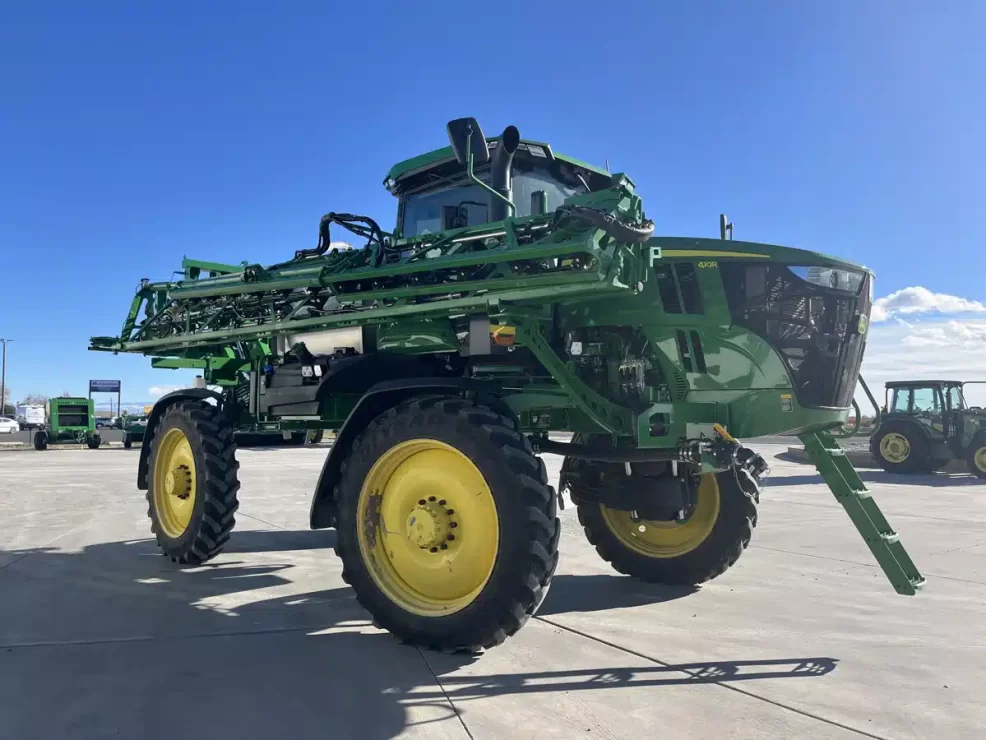

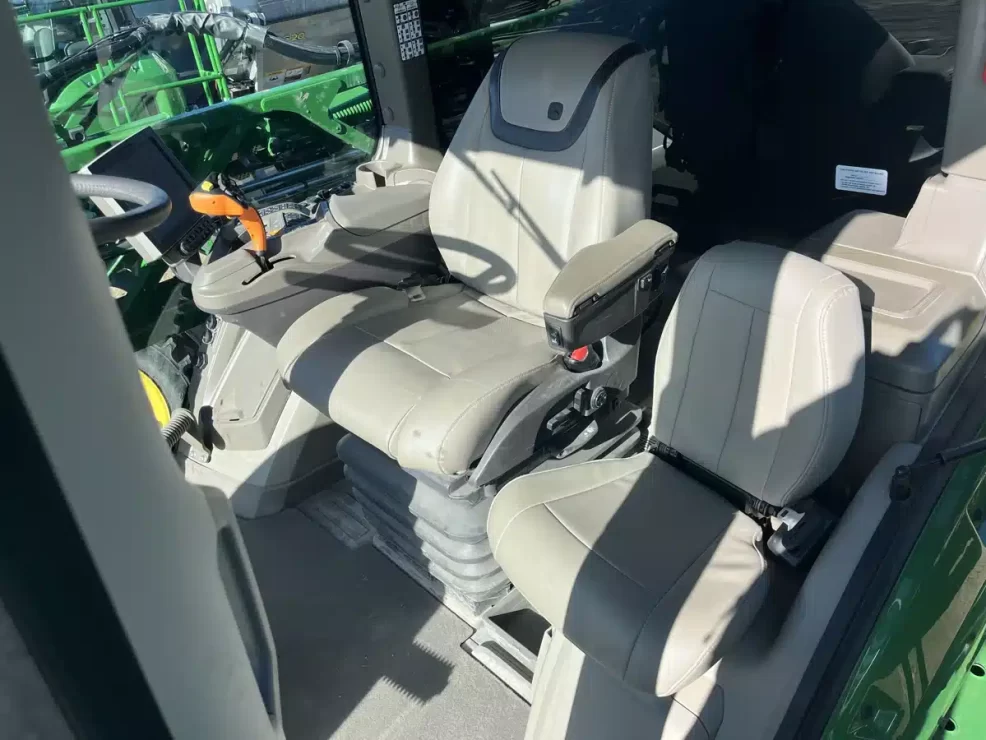

Additional Photos
