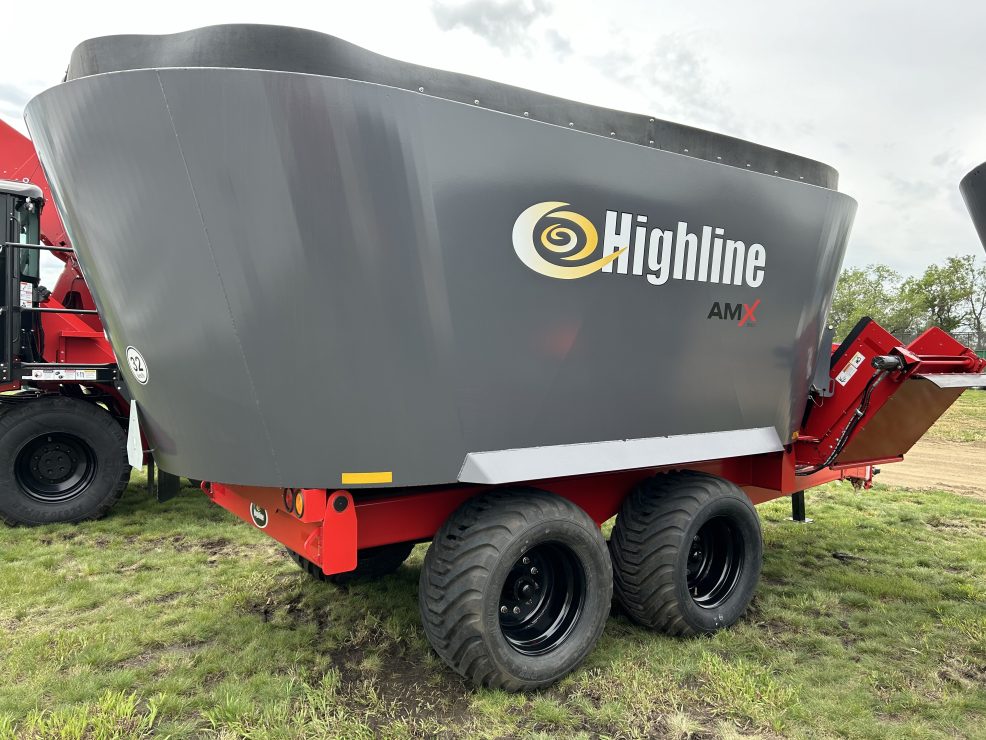

Highline AMX850T TMR Mixer

The Highline AMX850T TMR Mixer is a feed mixer designed to deliver consistent feed mixtures for livestock with a tub capacity of 745 cubic feet or 854 cubic feet with extensions. Key features include twin vertical mixing screws that come standard with five knives, expandable to ten, which ensure thorough mixing and minimal dead spots within the tub. The AMX850T has several key features designed to optimize livestock feeding operations:

1. Twin Vertical Mixing Screws: Equipped with five knives per screw (expandable to ten), ensuring thorough and consistent mixing with minimal dead spots​
2. High-Flotation Tires: Dual axles with high-flotation tires (550/45-22.5 16 ply) to handle extreme weather conditions and improve stability​​
3. Tub Capacity: 754 ft³ (21 m³) or 850 ft³ (24 m³) with 10″ extensions

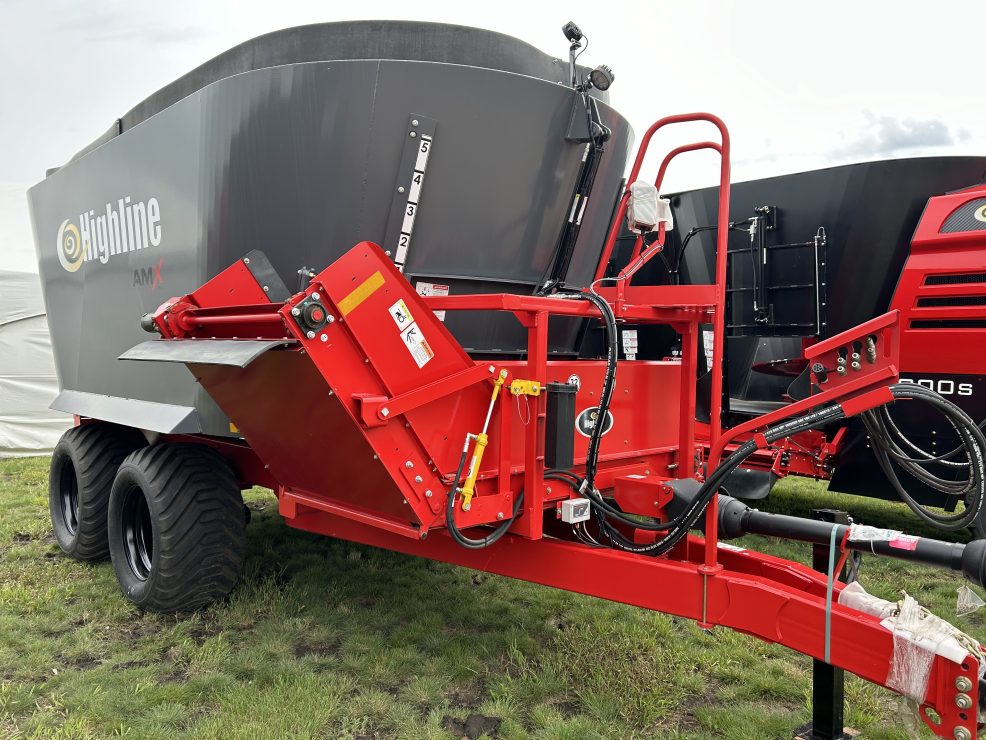

4. Wide Unload Door: A 58-inch wide front unload door for fast and even feed delivery, reducing the number of tractor stops and ensuring optimal clean-out​
5. Heavy-Duty Hubs: Built with heavy-duty 10-bolt hubs to enhance durability and reliability in tough operational conditions​
6. Optional Features: Includes a two-speed gearbox for flexible operation, various conveyor options (Hydraulic Fold, Dogleg, and Flat), and mud flaps to prevent material throw from tires​

Here are the key specifications of the Highline AMX850T TMR Mixer:

Specifications

Tub Capacity

745 ft3 (21 m3)

Tub Capacity w/ 10" extension

850 ft3 (24 m3)

Number of Screws

2

Screw Speed

33 rpm @ 1000 PTO

EngineScrew Thickness and Material

⅝" (15.9 mm) Steel

Tub Wall Thickness and Material

¼" (6.4 mm) AR200 Steel

Tub Floor Thickness and Material

¾" (19 mm) Steel

Aggression Plates

Yes

Weigh System

4 Point Weighing System

Unloading Conveyors

Chain with Steel Slats

Unload Height Flat

36” (914 mm)

Unload Height Dogleg

50” (1270 mm)

Unload Height Hydraulic

36” - 60” (914 m - 1524 mm)

Unload Door Width

58” (1473 mm)

PTO Minimum HP

150 hp (112 kW)

PTO Drive

1 ⅜” PTO Yoke, Cat 6 PTO, Shear Protection, 1000 rpm

Tires - Single Axle

Two 445/50-22.5

Tires - Tandem Axle

Four 550/45-22.5 20 ply

Suspension

Single Axle, HD 10 Bolt Hubs or Tandem Walking Beam

Unloaded Weight

20200 lb (9182 kg)

Max Payload - Single Axle (20 mph/32 kph)

17000 lb (7711 kg)

Max Payload - Single Axle (7 mph/11 kph)

24000 lb at 7 mph (10886 kg)

Max Payload - Tandem Axle (20 mph/32 kph)

24000 lb (10886 kg)

Length

316" (8.03 m)

Height - Standard

114" (2.90 m)

Height - With 10” Extension

124" (3.15 m)

Width - Flat Conveyor

109” (2.77 m)

Wheel Track Width

107” (2.72 m)
