Highline AMX 1000S TMR Feed Mixer

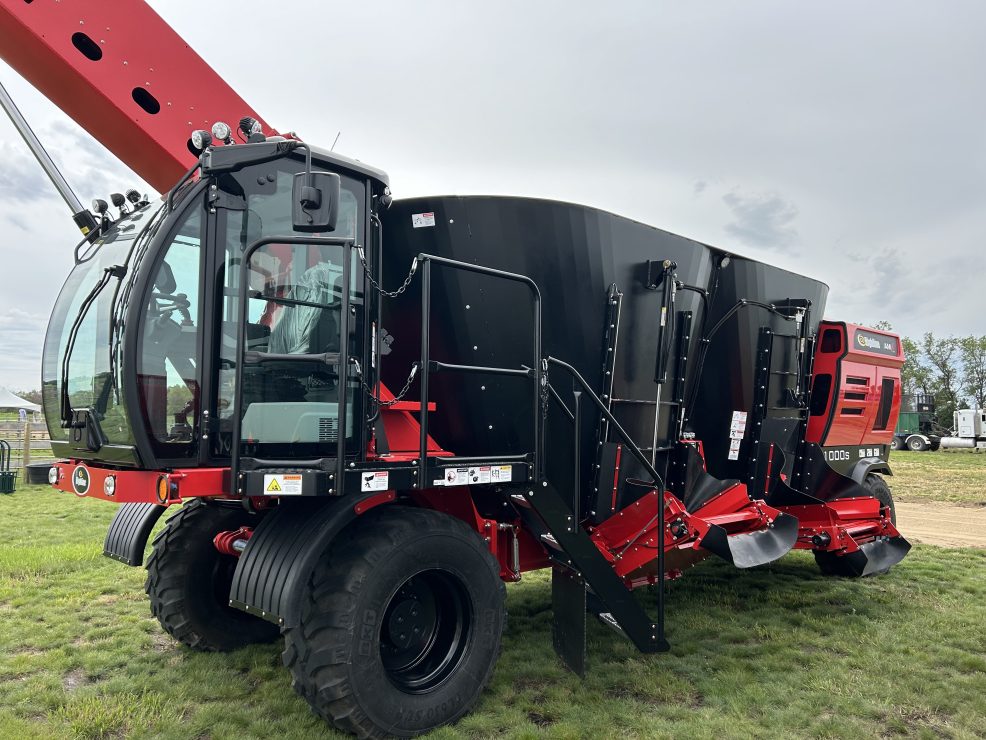

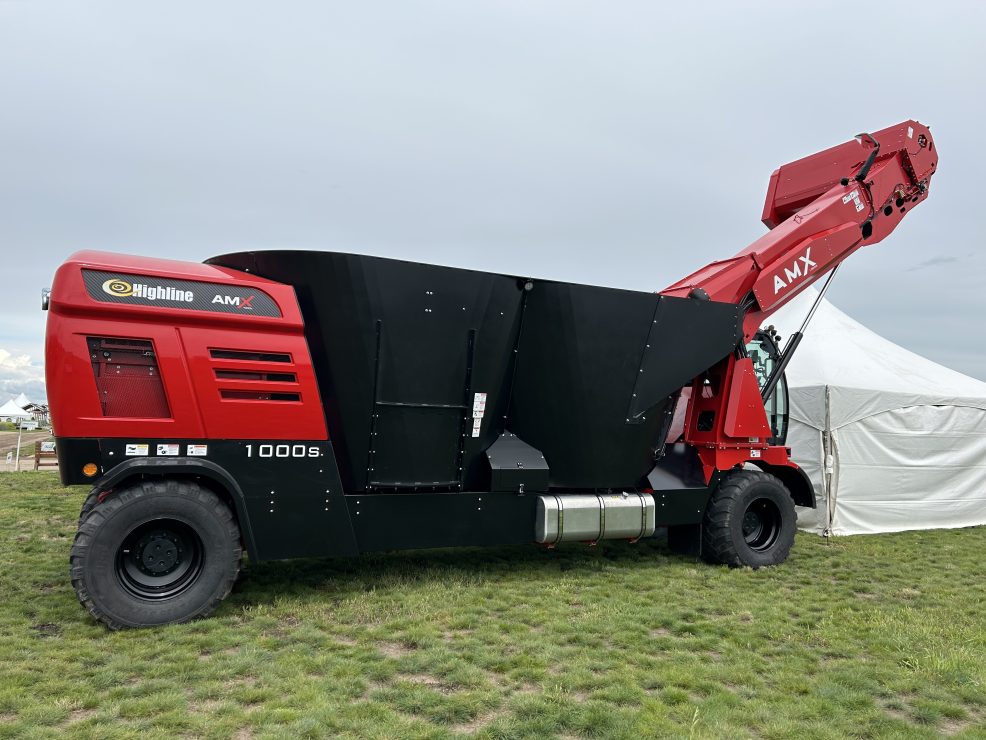

Highline AMX 1000S TMR Mixer | Highline Photo

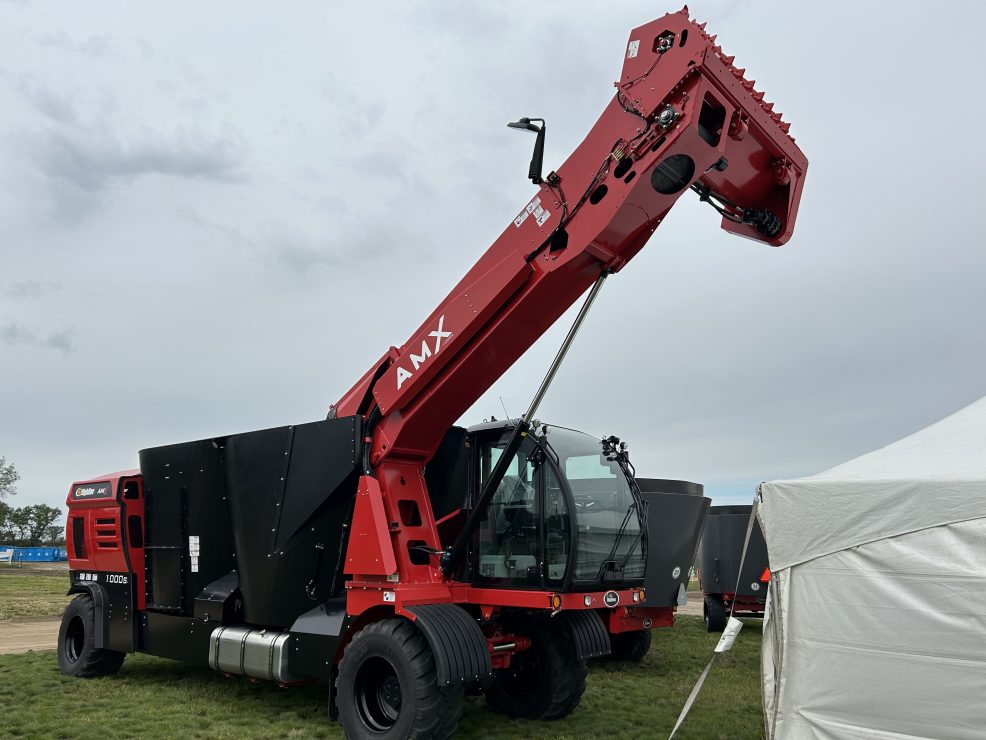

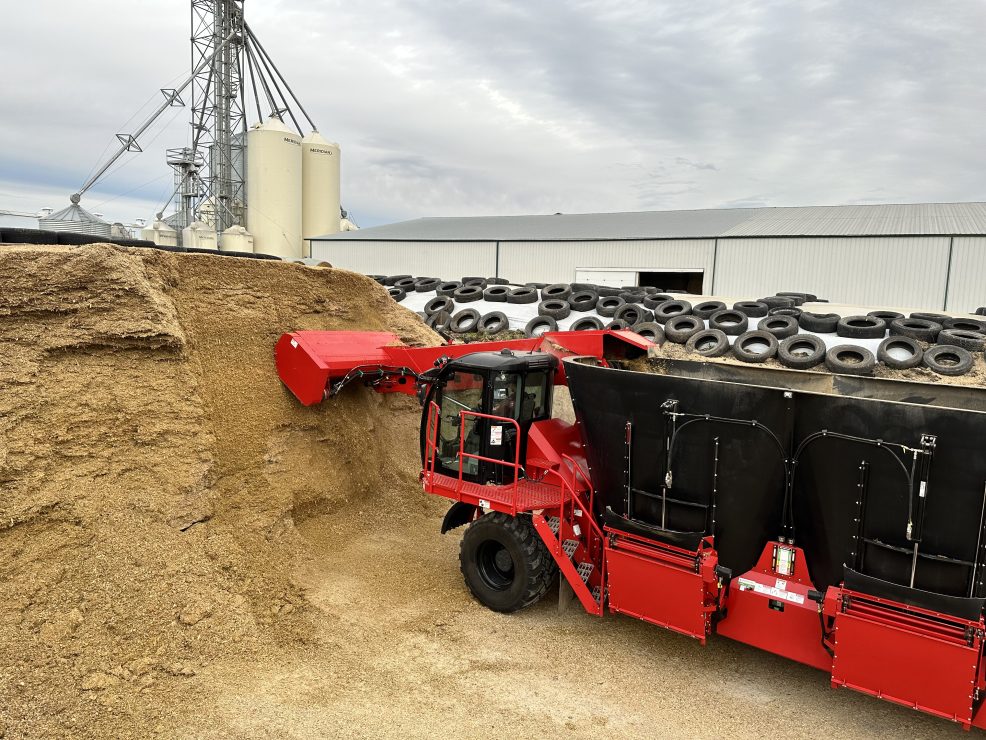

The Highline AMX 1000S is a self-propelled feed mixer with a tub capacity of 1000 cubic feet (28.3 cubic meters) and is powered by a Caterpillar C7.1 six-cylinder diesel engine that delivers 300 HP. The AMX 1000S features dual hydraulically driven vertical augers with customizable speeds (1-55 RPM) for thorough and consistent feed mixing. The mixer’s mobility is due in part because of the large high-flotation tires, all-wheel drive, three steering modes (front, circle, and crab), and 19″ ground clearance, making it highly maneuverable. The self-loading arm facilitates single-operator use, enhancing overall productivity while the cab includes air-ride heated seats, automatic climate control, a touchscreen display, and ergonomic joystick controls.

Here are the key specifications of the Highline AMX 1000S Self Propelled TMR Mixer:

Specifications

Tub Capacity: 1000 ft3 (28.3 m3)
Screw Speed: 3 Adjustable Presets, Range 1-50 rpm
Engine: Cummins B6.7 Six Cylinder Diesel
Power: 310 HP
Drive Modes: Work (max 25 km/h) and Travel (max 40 km/h)
Transmission: Full Hydrostatic (AWD)
Tires: 600/55R26.5 - 70 psi
Suspension: Mechanical - Leaf Springs & Stabilizer Bars
Steering: Front, Circle and Crab
Milling Head Power: 150 HP
Milling Head Speed: Variable 0-600 rpm
Milling Head Width: 92" (2.34 m)
Max Load Height: 260" (6.6 m)
Conveyors: Chain with Steel Slats
Positions - Standard: Positions - Standard Standard front LHS conveyor OR drop-chute
Positions - Optional: Optional rear conveyor OR drop-chute (LHS or RHS)
Maximum Feedout Height: 42" (1.06 m)
Unloaded Weight with Arm: 46000 lb (20909 kg)
Max Payload: 26000 lb (11793 kg)
Length - With Loading Arm: 478" (12.14 m)
Height - Top of Cab Antenna: 137" (3.47 m)
Width - LHS Conveyor Only (Up/Down): 132" (3.35 m) / 141” (3.58 m)
Width - Conveyor both sides (Up/Down: 138” (3.50 m) / 171” (4.34 m)
Width - LHS Drop Chute Only (Up/Down): 126” (3.20 m) / 126” (3.20 m)
Width - Drop Chute Both Sides (Up/Down): 127” (3.22 m) / 133” (3.37 m)
Wheel Base: 275” (6.99 m)
Ground Clearance: 19” (.48 m)
