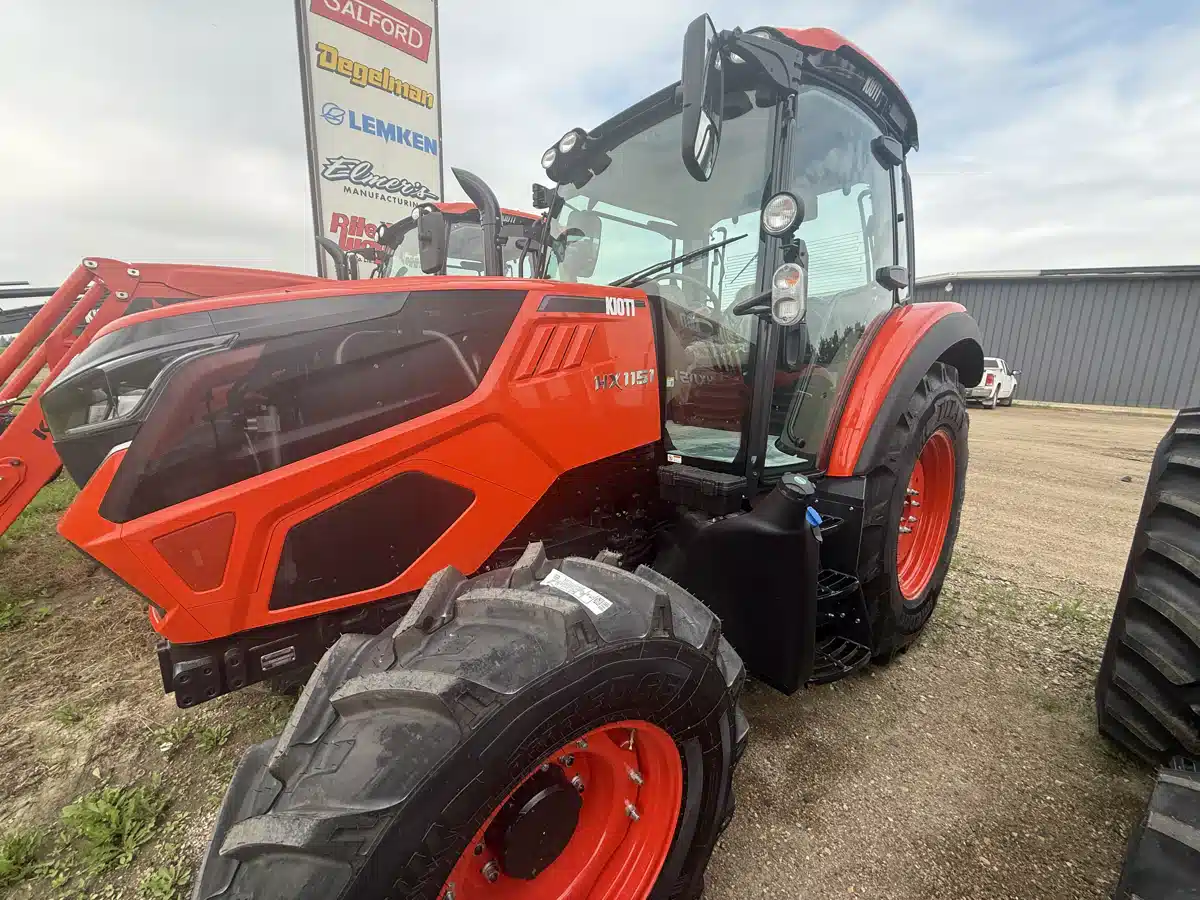

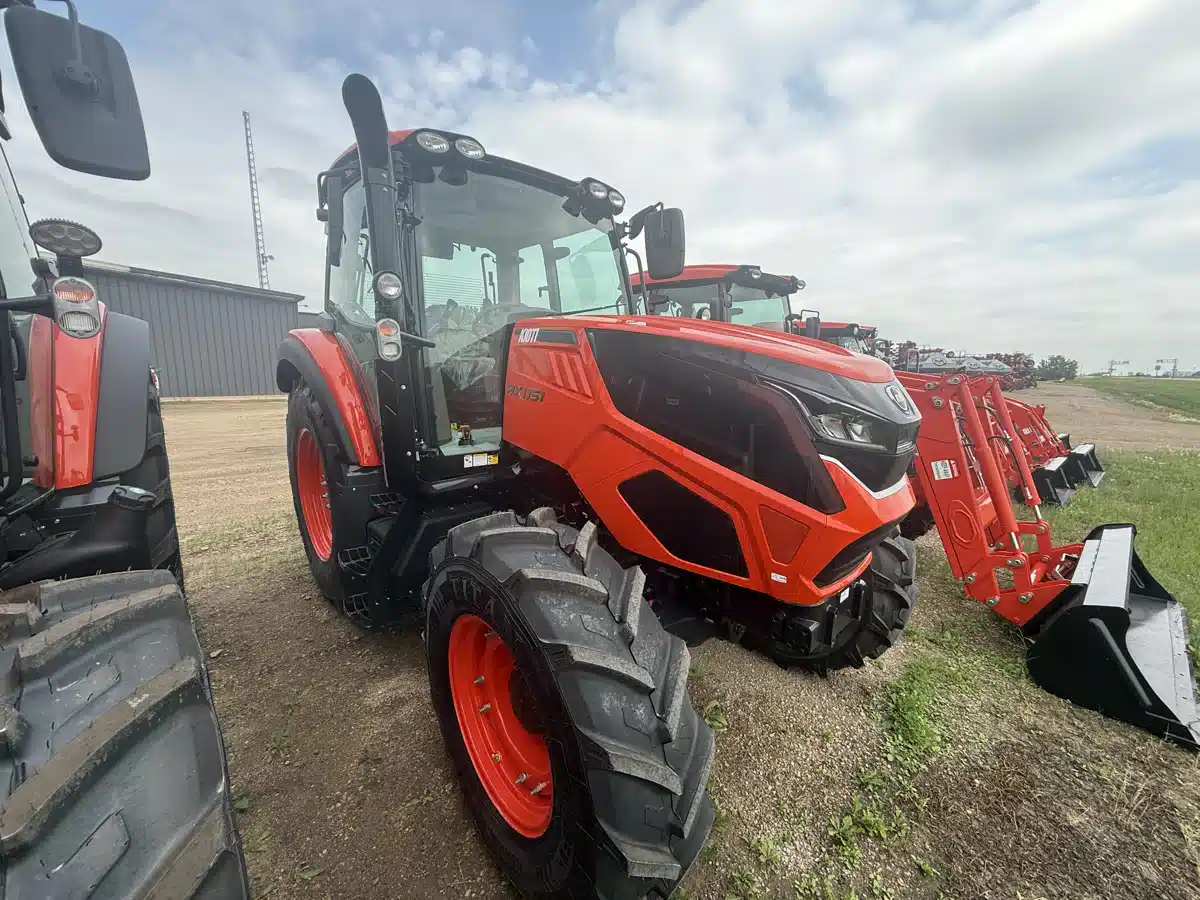

2026 Kioti HX1151 Tractor

2026 Kioti HX1151

Complete with KL1155 Loader package including 90" quick attach bucket and grill guard

Engine

- Model 4J243TA-TP5B
- Engine Manufacturer KIOTI
- Power 115.30 hp (86 kW)
- Displacement 233.90 cu. in. (3,833 cc)
- RPM 2,200 rpm
- Fuel Type Diesel
- Aspiration Turbo Charged w/ Air to Air Intercooler
- Fuel Capacity 47.60 gal (180 L)

Transmission

- Transmission Manual: Power Shuttle
- Shuttle Power Shuttle
- Travel Speeds Forward 24
- Travel Speeds Reverse 24
- Travel Speeds Minimum Speed 1.15 mph (1.85 km/h)
- Travel Speeds Maximum Speed 23.84 mph (38.36 km/h)
- Travel Speeds Min Reverse Speed 1.14 mph (1.83 km/h)
- Travel Speeds Max Reverse Speed 23.67 mph (38.10 km/h)

PTO

- PTO Type Independent
- PTO Power 83.90 hp (62.60 kW)
- Rear Speed 540 / 540E / 1000
- Mid Speed N/A

Drive Train

- Brakes Wet Multi Disc
- Clutch Wet Multi Disc
- Steering Hydrostatic Power Steering

Hydraulics

- Pump Gear
- Pump Capacity 32 gpm (121 lpm)
- Lift Capacity 8,002 lb (3,360 kg)

Hitch

- Type Three Point
- Category Category 2
- Control Type Electronic Control
- Lift Capacity 8,002 lb (3,630 kg)

Dimensions

- Length with Hitch 170.78 in (4,338 mm)
- Width 88.58 in (2,250 mm)
- Height 111.93 in (2,843 mm)
- Wheelbase 94.88 in (2,410 mm)
- Ground Clearance 18.94 in (481 mm)
- Front Tread 65.35 in (1,660 mm)
- Rear Tread 70.47 in (1,790 mm)
- Turning Radius 12.69 ft (3.87 m)

Tires

- Agricultural
- Front: 13.6-24
- Rear: 18.4-34
