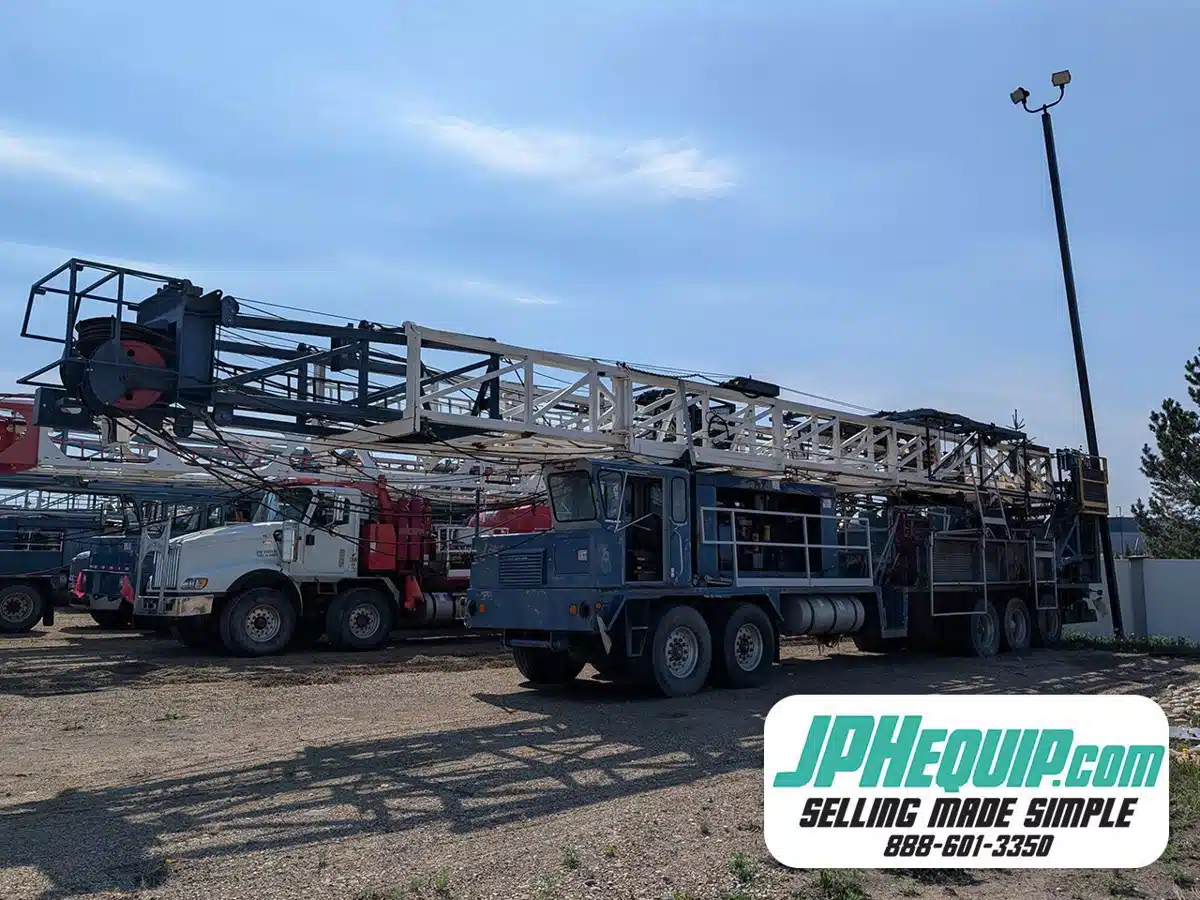

2004 Service Rig Truck - Pickup

2004 Service Rig Care Industries 105 - 200 Double Mounted on 1976 SkyTop Carrier

WE SHIP DIRECT TO YOU, USA, and Worldwide!! Financing Available

• Stock Number: 11835 OB
• Location: Central Alberta
• 439 HP Cat C10
• 1976 Skytop Twin Steer
• Engine EPA Label Present
• Rig Re-certification July 2013
• Shipping Dimensions: L 48’ (with rig: 66’) • W 123" • H 13’
• Model: 1051EG-200,000
• Nominal Height: 105 feet
• Manufacture Date: April 2004
• Maximum Static Hook Load: 180,000 lbs (80,000 daN) on 6 lines 150,000 lbs (66,700 daN) on 4 lines
• Maximum Pipe / Rod Weight: 120,000 lbs (full setback)
• Maximum Wind Capacity: 30.3 m/s (69 mph)
• Maximum Crown Load: 25,000 lbs
• Guyline Requirements: Load Lines: 7/8" diameter
• Board Lines: 3/4" diameter
• Crown Lines: 9/16" diameter
• Pipe Setback: Full setback, no hook load
• Maximum Rod Weight: 25,000 lbs
• Well Spacing: 6'-0" Load Charts (Summary)
• 4-Part Line Chart and 6-Part Line Chart are provided on the plaques with wind speed vs. maximum hook load curves.
• Key notes: Full setback with rods Full setback without rods
• Charts account for wind speeds up to 70+ mph

• Contact us today if you need more information • JPH Equipment • Buying Made Simple • We Ship Worldwide •

• Export/Duties/Tariffs/Transport not included. Additional fees will apply for export outside of Canada

*We do not guarantee that these specifications are error-free or fully complete. The above specifications/details are provided as reference only and should be confirmed prior to purchase.*
