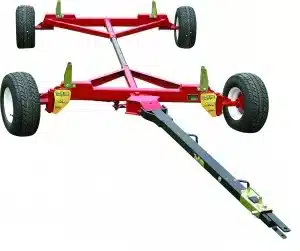

New Martin Farm Wagons 4106 Wagon

4 Wheel – 6 Ton Specifications Capacity: 6 Ton Axle: 3x4x.25 Wall Spindles: 1 3/4 ” Dia. 1045 Hot Rolled Hubs: 4000lb 6 Bolt Height to top of axle: 16.5" with 20.5 x 8 – 10, 12 ply Tires Track Width: 75" Hub face to Hub face Steering: Automotive Type Tie Rod Ends: Greaseable Automotive Style Ball Joints Spindle Kingpin: 1" Bolt, Tapered Bearings Short Tongue Kingpin: 1" Bolt, Tapered Bearings Adjustable Bolster Stakes: 38" & 42" Approx. Weight with Tires: With 11L 15 8 ply Tires 705 lbs Approx. Weight Less wheels: 480 lbs apacity 15 Ton Axle Rear 3x6x.375 Wall Front 6x4x.25 Wall Spindles 2 1/2" Dia. 1045 Hot Rolled Hubs 8000lb 8 Bolt Height to top of axle 26" with 12.5L 16 Implement tires Track Width 81" Hub face to Hub face Steering Automotive Type Tie Rod Ends Greaseable Automotive Style Ball Joints Spindle Kingpin 1-1/2" Bolt, Tapered Bearings Short Tongue Kingpin 1-1/2" Bolt, Tapered Bearings Bolster Stakes Width 42" Approx. Weight with Tires With 11×22.5 Truck Tires 2100 lbs Approx. Weight Less wheels 1060 lbs Tongue Style: Adjustable Quick Hitch
