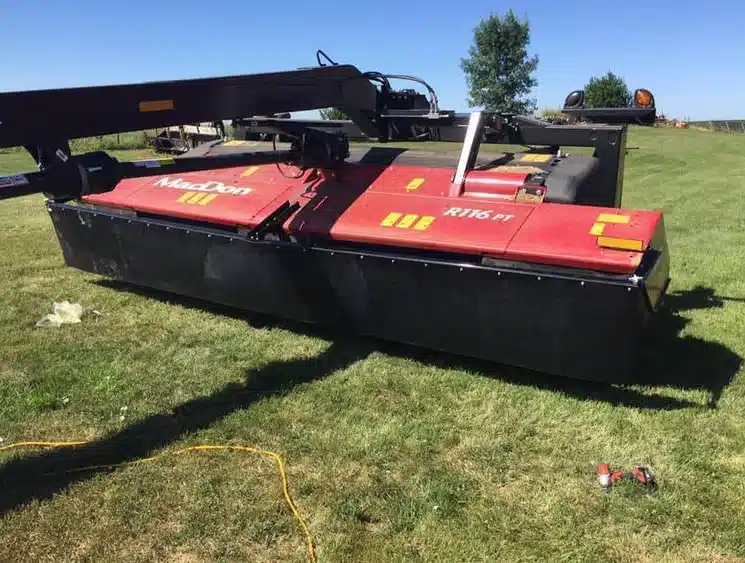

2017 MacDon R116 Disc Mower Conditioner

Size 4.9 M (16’) Number of discs/cutting blades 10/2 Required power 125 hp PTO 1000 RPM PTO 1 3/8" (35 mm) / 21 spline 1 3/4" (45 mm) / 20 spline Weight (steel conditioner) 6040 lbs (2740 kg) Weight (steel conditioner with road transport) 7540 lbs (3421 kg) Length (without road transport) : 338” (858 cm) Length (with optional road transport*): 386” (985 cm) Transport width (without road transport) : 198” (502 cm) Transport width (with optional road transport*): 106” (269 cm) Tractor hydraulic capacity (Psi) 2000 psi Tractor hydraulic outlets : requires 2 outlets, 3 with the hydraulic adjustment option of the cutterbar angle. Gear train protection (cutterbar) : shear pin in each spindle Hay conditioner options : Type/Length : intermeshing steel and polyurethane rolls and finger type / 129" (328 cm) / No conditioner Hitch type : drawbar (Drawbar) or Cat. II 2-Point Hitch (Quick Hitch Adaptable). Cutterbar angle adjustment : manual standard, hydraulic optional. Mower configuration : center pivot Field tires 31-13.5 R15 8ply Transport tires 235-80 R16 Divider for tall crops, and hydraulic adjustment of the cutterbar angle
