New 2025 Vermeer BPX9010 Rake

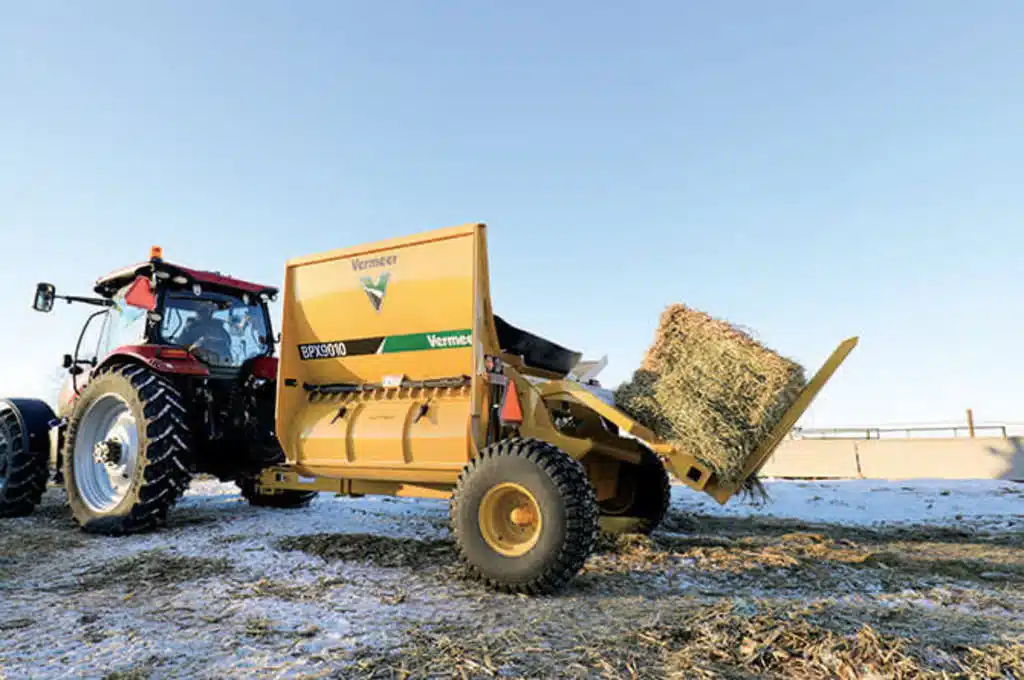

Meet the BPX9010 bale processor. Distribute a consistent, uniform windrow of crop along the bunk line or out in the pasture. Or spread bedding with consistency and accuracy at ranges up to 50 ft (15.2 m). This workhorse combines simplicity, durability and versatility -- an all-around processor ready to perform a variety of applications. Dimensions Tires Standard: 14L x 16.1FL; Optional: 16.5L -16.1SL 6 SofTrac II flotation tire Axle adjustment 12 in (30.5 cm) each axle Drawbar Weight 1480 lbs (671.3 kg) Weight 5240 lbs (2376.8 kg) Working Width 11.2 ft (3.4 m) Transport Width 8.2 ft (2.5 m) Height 8.5 ft (2.6 m) Length 15.8 ft (4.8 m) Operational PTO horsepower minimum 85 hp (63 kW) Horizontal spread distance Up to 50 ft (15.2 m) Discharge Direction Right hand Flail Drum Quantity 30 Flail Drum Speed 1000 rpm Flail Drum Length 78 in (198.1 cm) Flail Drum Diameter 26.8 in (68.1 cm) Flail description 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring Cut Control Bar Quantity 7 Cut Control Bar Adjustment Hand lever with 5 settings, plus an additional high/low setting Bale weight capacity 2500 lbs (1134 kg) Bale size capacity (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m) Bale rotation 3 roller chains with bolt-on cross slat Hydraulic flow rate 8 gpm (30.3 L/min) Hydraulics Pressure 2000 psi (137.9 bar) Hydraulic Type 3 double-acting (2 double-acting with optional kit) PTO speed 1000 rpm PTO horsepower maximum 210 hp (156.6 kw) PTO horsepower recommended 100 hp (74.6 kw)
