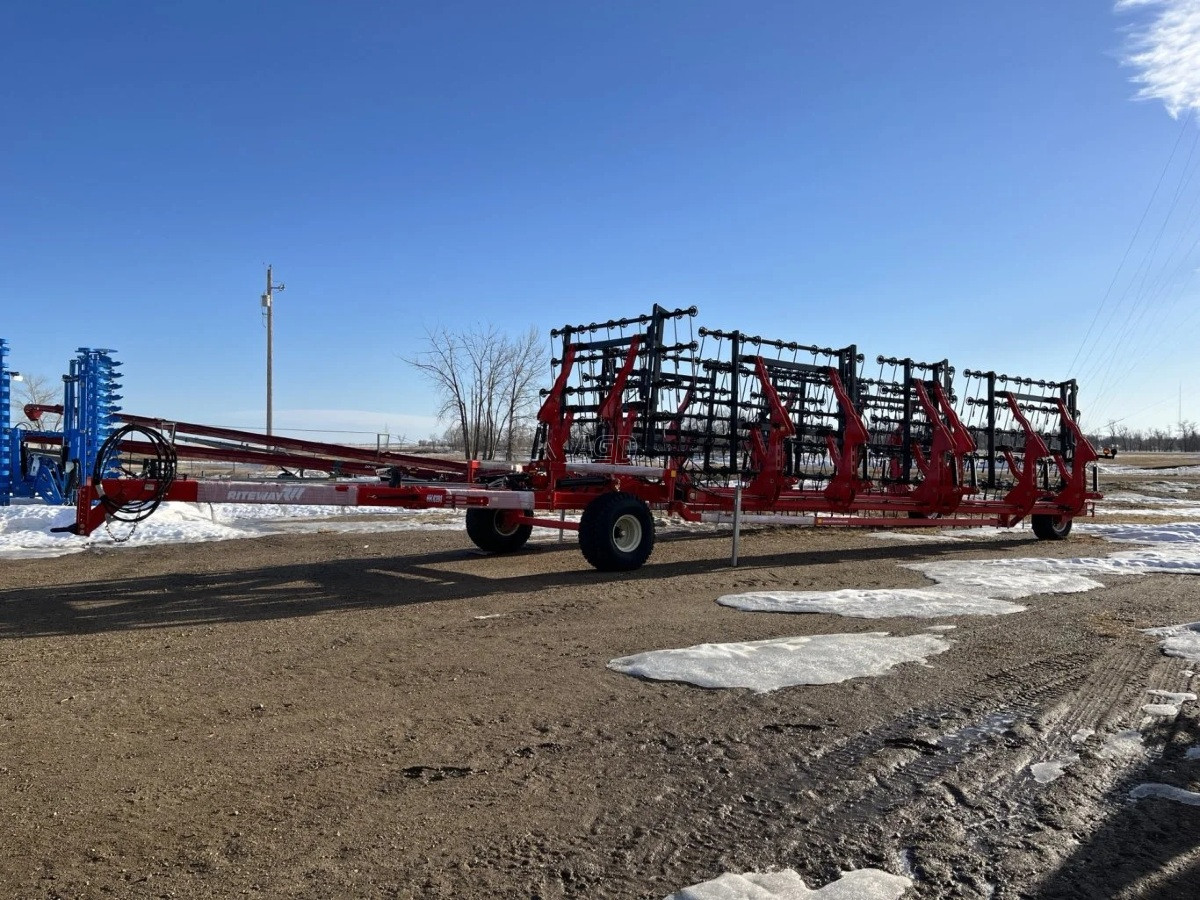

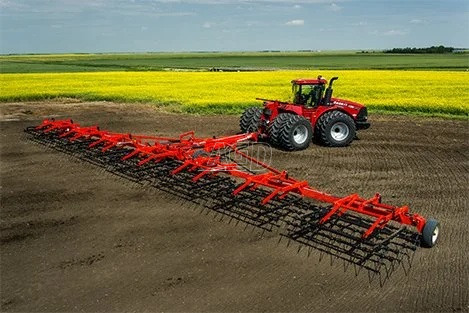

New 2024 Riteway HH8200 Harrow

Unit c/w 5/8" x 28"Carbide Teeth, Hydraulic Tine Adjustment and Parallel Linkage Down Pressure is Included. Handle conventional tilling, minimum-till and zero-till operations. Tine angle is adjustable hydraulically from the tractor cab so the operator may adjust the aggressiveness of harrowing to match the needs of the field. Each harrow section is connected to the bar by parallel linkage arms that allow each section to float independently while maintaining a constant pressure to the ground. With parallel linkage, there is no need to adjust the wheels as the tines wear because constant pressure is maintained by the linkage arms. Features: Parallel Linkage Arms with double heavy- duty springs apply equal pressure to all four corners of the harrow section. Hydraulically adjust tine angle from your tractor cab from 45° to 85°. Knuckle assembly provides strong, durable connection between frame and wings. Wings follow contour of the land independently from the main frame. HH8200-NT - transport width of 9’ 6” HH8200 - transport width 14' 7" with the exception of the 90' harrow (16' 6" transport width) Auto fold activated from tractor cab. Transport/Field Pivot wheel system ensures smooth transition between field and transport positions. Field Transport Pivot Wheel System eases harrow bar in or out of transport position.
