2025 NC Engineering 20 TON Trailer - Dump
Add as favouriteListing Details
- AgDealer Equipment:
- 1216580
- Stock Number:
- 10
- Region:
- Woodstock, Ontario |
- Category:
- Trailers
- Subcategory:
- Trailers - Dump
- Manufacturer:
- NC Engineering
- Model Year:
- 2025
- Series:
- N/A
- Model:
- 20 TON
- Drive Type:
- N/A
- Horsepower:
- N/A
- Separator Hours:
- N/A
- Hours:
- N/A
- Mileage:
- N/A
- Condition:
- New
- Description:
-

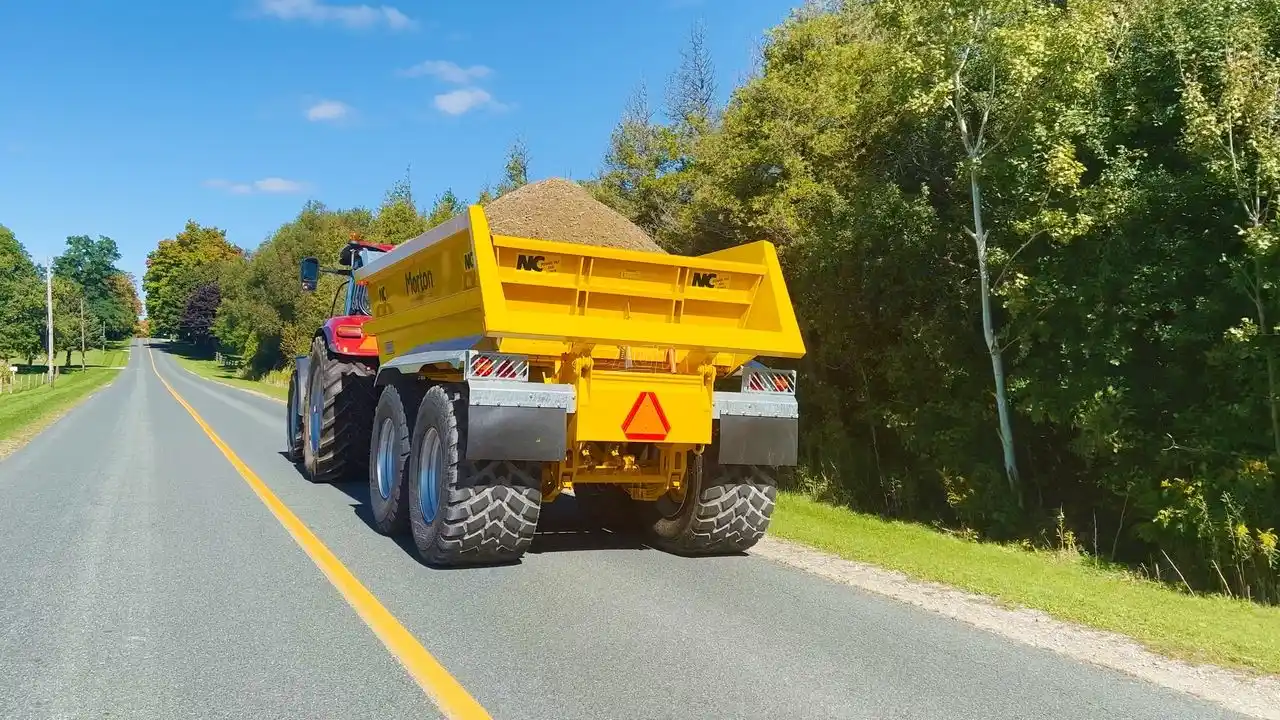

NC 20 Ton Dump Trailer 710 FLOTATION
Features and functions - Ideal for agriculture, construction, demolition and land clearing - capacity 20 ton - Genuine hardox 450 bin - 710 BKT flotation with 560 BKT option - hydraulic brakes on high-speed axles - 73 degree tipping angle - automatic rear gate opening downward - spring drawbar - 360-degree swivel hitch ring - independent suspension with leaf springs - rear axle stabilizer - chromed twin 3 stage tipping cylinders - reinforced frame - standard safety arms - removable galvanized rock guard with optional galvanized outer sides - the rear gate can remain lowered, ideal for land clearing - high-quality paint - LED signal and brake lights
Technical information Unladen Weight ... 12672 lbs Cubic Capacity ... 13 yds³ Loading Capacity ... 44000 lbs Max Hitch Load ... 6600 lbs Overall Length ... 19’6” Overall Width ... 8’9” Overall Height ... 7’10” Bin Height ... 3’4” Bin Length ... 15’ Bin Width at Top ... 7’9” Bin Width at Bottom ... 6’7” Side Thickness ... 5mm Floor Thickness ... 6mm Running Gear ... Springs, 10 stud high speed hub Tires ... 560x60x22.5 Brakes ... (4) hyd Tipping Cylinders ... 2x28lts
